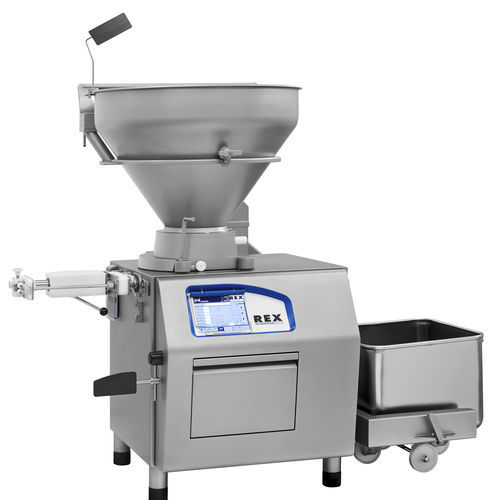

The RVF 736 is particularly designed for the processing of very cold or very tough meat emulsions. Thanks to its very strong servo drive, the RVF 736 achieves filling pressures of up to 70 bar; which is particularly useful in conjunction with REX MC-3 in-line grinder technology.
The housing with its smooth and hygienic design is self-supporting and entirely made out of stainless steel. The extra robust rotary vane conveyor system ensures highest portioning accuracy with maximum life time. It ensures gentle transport and minimum air pockets in the final product.
The rotary vane conveyor system is available with eight, 12 or 14 vanes, alternatively also with blind vanes. A simple pressure levelling piston ensures highest portioning accuracy.
The optional lifting/tipping device is available for 200-litre or 300-litre standard lifting trucks (optional). Two different hopper sizes can be selected according to the needs of the operation. Folding hoppers in volumes of 250 and 350 litres are available.
The standard touchscreen controls make the appliance easy to operate and can be used to drive various clipping machines and attachments. The servo drive technology, used by REX for more than 25 years, has been especially strengthened for the RVF 736 in order to achieve maximum filling pressure. It goes without saying that the RVF 736 can always be fitted with a rotating or fixed casing holding device to make twisting of artificial or natural casings easy.
The advantages at a glance
Large infeed system for gentle transport
Minimal energy consumption
Modern hygiene design
Very simple operation thanks to 12“ touchscreen control
