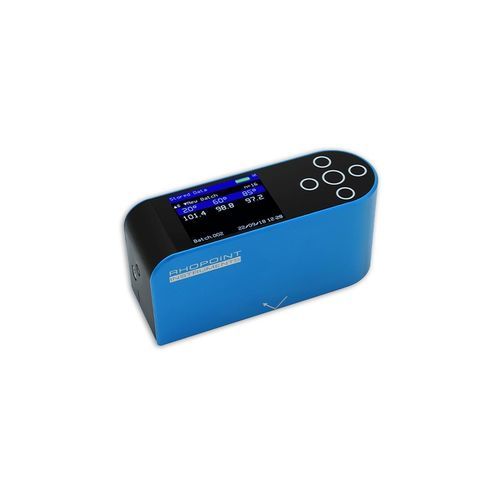

Three-angle glossmeter Novo-Gloss Trio 20/60/85

wide rangedigitalwith data output

Overview

• Compact 20°/60°/85° glossmeter for measurements from matt to mirror finishes.
• Simultaneous multi-angle measurement for high, universal and low gloss applications.
• Includes ISO 17025 (UKAS) traceable calibration standards and calibration certificate.

Application and Angle Guidance
The Novo-Gloss Trio is suitable for gloss measurement across coatings, paints, plastics, metals and other finished surfaces. Use 60° for routine/universal measurements, 20° for high-gloss finishes requiring higher resolution, and 85° for low-gloss or grazing-angle measurements and textured surfaces.

Key Features

• Simultaneous reporting of GU (gloss units) or % reflectivity with date/time and sample ID.
• Full batch statistics (mean, min, max, standard deviation) and graphical trend display.
• User-definable batch names, batch sizes and Pass/Fail limits for instant non-conformance identification.
• Automatic interval measurements for area surveys and fast USB data transfer; device-compatible app and Bluetooth support.
• Internal memory (~2,000 readings) and long-life rechargeable lithium-ion battery.

Standards and Calibration
Supplied with instrument calibration certificate and ISO 17025 (UKAS) traceable calibration tile. Conforms to common gloss standards including ISO 2813 and ASTM D523; suitable for industry reference measurements.

Included Accessories

• High gloss calibration tile with cleaning cloth
• USB data & mains cable
• Wrist strap
• USB stick containing instruction manual and sample data
• Instrument calibration certificate and ISO 17025 (UKAS) tile certificate

Technical Specifications

• Model series: Novo-Gloss Trio
• Measurement angles: 20°, 60°, 85°
• 20° range: 0–100 GU (extended 100–2000 GU); repeatability 0.2 GU; resolution 0.1 GU; reproducibility 0.5 GU
• 20° measurement area: 6 mm × 6.4 mm
• 60° ranges: 0–10 / 10–100 / 100–1000 GU; repeatability typically 0.1–0.2 GU; resolution 0.1 GU
• 60° measurement area: 6 mm × 12 mm
• 85° range: 0–100 GU (100–199 GU higher range); repeatability 0.2 GU; resolution 0.1 GU
• 85° measurement area: 4.4 mm × 44 mm (grazing geometry)
• Memory: 8 MB (approx. 2,000 readings)
• Battery: Rechargeable lithium-ion; operation time >17 hours; readings per charge >20,000 (typical)
• Operating temperature: 15°C–40°C; humidity up to 85% non-condensing
• Instrument dimensions: 65 mm (H) × 140 mm (W) × 50 mm (D); weight: 390 g
• Packed dimensions: 110 mm (H) × 280 mm (W) × 220 mm (D); packed weight: 1.6 kg
• Commodity code: 9027 5000
• Order code (Novo-Gloss Trio): A4000-006.2
