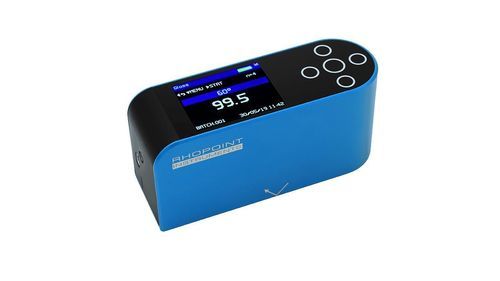

Single-angle glossmeter Novo-Gloss 60

portabledigitalwith data output

Short description

• 60° glossmeter for all gloss applications
• Full colour easy to read screen
• Supplied with standards calibrated and certified according to ISO 17025 UKAS
• Pass / Fail for easy identification of non-conformances

Product overview
The Novo-Gloss 60° glossmeter is suitable for measuring gloss in most applications from matt to high gloss finishes. This high-specification handheld glossmeter is suitable for use in laboratory and production areas and is intended for general gloss control across substrates and industry sectors including paints and coatings.

Glossmeter features

• Ultra-fast measurement time
• Time and date stamped results
• Automatic tile detection for faster calibration
• Full on-board statistics
• Graphical trend analysis of results for simple reporting
• Easy batching – user definable batch size and names
• Software-free data transfer of measurements and batches
• Direct data input via Bluetooth to programs such as Microsoft Excel
• Pass / Fail functionality for instant identification of non-conformances
• Auto-ranging, suitable for measuring matt to mirror finishes
• Compliant to major international standards (e.g. ASTM D523, ISO 2813, ASTM D2457)
• Can be calibrated to any standard (from low gloss to mirror finish)

Measurement & angles
Gloss is measured by projecting a defined amount of light onto a surface and quantifying the reflected light. The illumination/detection angle is selected according to surface type and gloss level to provide repeatable, traceable results.

Gloss measurement angles

• 20° — High gloss surfaces (improved resolution for surfaces measuring ~70 GU and above at 60°)
• 60° — Universal/reference angle for most gloss applications
• 85° — Low gloss / grazing angle for surfaces measuring less than ~10 GU at 60°; larger measurement area for textured surfaces
• 45° — Specialty angle used for certain standards (e.g. ASTM D2457) and specific plastic/ceramic tests

Available models

• Novo-Gloss Trio — 20°, 60°, 85°
• Novo-Gloss 60 — 60°
• Novo-Gloss 45 — 45°

Applications

• Paints & coatings
• Automotive (interior, exterior, refinish)
• Consumer electronics and device covers
• Plastics (including curved surfaces)
• Furniture
• Polished stone
• Powder coating
• Textiles
• Yacht manufacturing and other industrial surface applications

Included accessories & certificates

• Instrument calibration certificate and ISO 17025 UKAS tile calibration certificate
• USB data & mains cable
• Wrist strap
• USB content: instruction manual
• High gloss calibration tile with cleaning cloth
• Quick Start Guide

Technical specifications

• Model name: Novo-Gloss 60
• Measurement angle: 60° (standard)
• Measurement area (60°): 6 mm x 12 mm
• Range (60°): 0 - 1000 GU (segmented: 0-10; 10-100; 100-1000)
• Repeatability (60°): 0.1 GU (0-10), 0.2 GU (10-100), 0.2% (100-1000)
• Reproducibility (60°): 0.2 GU (0-10), 0.5 GU (10-100), 0.5% (100-1000) — mirror-gloss standard recommended for best reproducibility
• Resolution: 0.1 GU
• Standards compliance: ISO 2813, ASTM D523, ISO 7668, ASTM D2457, DIN 67530, JIS Z 8741 (as applicable)
• Battery type: Rechargeable lithium ion
• Operation time: 17+ hours
• Readings per charge: 20,000+
• Memory: 8 MB (approx. 2,000 readings)
• Operating temperature: 15 °C - 40 °C
• Operating humidity: Up to 85% (non-condensing)
• Commodity code: 9027 5000
• Dimensions (instrument): 65 mm (H) x 140 mm (W) x 50 mm (D)
• Instrument weight: 390 g
• Packed weight: 1.6 kg
• Packed dimensions: 110 mm (H) x 280 mm (W) x 220 mm (D)
• Order / product code (example): Novo-Gloss 60 – A4000-008.2
