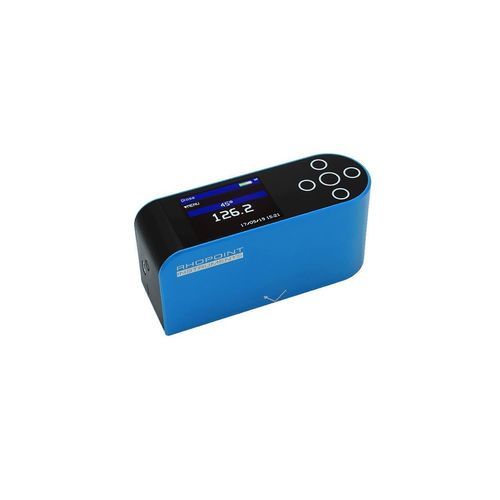

Single-angle glossmeter Novo-Gloss 45
with data outputsmall-orificewide range

Single-angle glossmeter - Novo-Gloss 45 - Rhopoint Instruments - with data output / small-orifice / wide range
Single-angle glossmeter - Novo-Gloss 45 - Rhopoint Instruments - with data output / small-orifice / wide range
Single-angle glossmeter - Novo-Gloss 45 - Rhopoint Instruments - with data output / small-orifice / wide range - image - 2
Single-angle glossmeter - Novo-Gloss 45 - Rhopoint Instruments - with data output / small-orifice / wide range - image - 3
Add to favorites
Compare this product
Go to the Rhopoint Instruments website for more information

Characteristics

Technology
single-angle
Other characteristics
with data output, small-orifice, wide range, digital, portable, for film

Description

Short description
  • 45° glossmeter for all gloss applications
  • Specialist angle for the measurement of films and ceramics
  • Full colour easy to read screen
  • Easy reporting


Features
  • Ultra-fast measurement time
  • Time and date stamped results
  • Measurement results in GU or in % reflectivity
  • Automatic tile detection for faster calibration
  • Full on-board statistics
  • Graphical trend analysis of results for simple reporting
  • Easy batching – user definable batch size and names for efficient measurement of multiple samples
  • Software-free data transfer of measurements and batches
  • Direct data input via Bluetooth – transmit each measured reading directly into Microsoft Excel or other programs
  • Pass / Fail for easy identification of non-conformances
  • Auto-ranging, suitable for measuring matt to mirror finishes
  • Compliant to major international standards such as ASTM C346
  • Calibrate to any standard (from low gloss to mirror finish)


Measurement angles & context
  • 45° measuring angle: speciality angle recommended for plastic films and solid plastic parts (in accordance with ASTM D2457 and ASTM C346)
  • 60° measurement angle: universal reference angle suitable for most gloss levels
  • 20° measurement angle: acute angle for improved resolution on high gloss surfaces (used when surfaces measure ~70 GU and above at 60°)
  • 85° measurement angle: grazing angle for low gloss surfaces and textured/uneven surfaces (recommended when surfaces measure less than ~10 GU at 60°)
  • Gloss is measured in gloss units (GU) and is traceable to reference standards


Applications
  • Ceramics
  • Metal finishing and polished metal
  • Plastics and plastic films
  • Automotive (exterior and refinish)
  • Furniture and wood coatings
  • Polished stone
  • Powder coating
  • Printing inks and printed cartons
  • Textiles
  • Consumer electronics (device covers)


Included accessories (overview)
  • Instrument calibration certificate
  • ISO 17025 UKAS tile calibration certificate
  • High gloss calibration tile with cleaning cloth
  • USB data & mains cable
  • Wrist strap
  • Instruction manual (on USB)
  • Quick Start Guide


Technical specifications
  • Measurement range (45°): 0 - 60 GU and 60 - 1000 GU (dual ranges)
  • Repeatability: 0.2 GU (or 0.2% for higher range)
  • Reproducibility: 0.5 GU (or 0.5% with mirror gloss calibration standard)
  • Resolution: 0.1 GU
  • Measurement area: 8 mm × 12 mm ellipse
  • Standards: ASTM D2457, ASTM C346 (45°); ISO 2813 and ASTM D523 referenced for other angles
  • Battery type: Rechargeable lithium ion
  • Operation time: > 17 hours
  • Readings per charge: > 20,000
  • Memory: 8 MB (approx. 2,000 readings)
  • Operating temperature: 15°C - 40°C (60°F - 104°F)
  • Operating humidity: Up to 85% (non-condensing)
  • Commodity code: 9027 5000
  • Dimensions (instrument): 65 mm (H) × 140 mm (W) × 50 mm (D)
  • Instrument weight: 390 g
  • Packed dimensions: 110 mm (H) × 280 mm (W) × 220 mm (D)
  • Packed weight: 1.6 kg
  • Order codes: Novo-Gloss 45 — A4000-011.2 (other models in range: Novo-Gloss 60 — A4000-008.2; Novo-Gloss Trio 20/60/85 — A4000-006.2)
  • Measurement output: GU or % reflectivity; time/date stamped results; Bluetooth transfer and software/App reporting available
  • Notes: Mirror gloss calibration standard recommended for best reproducibility
