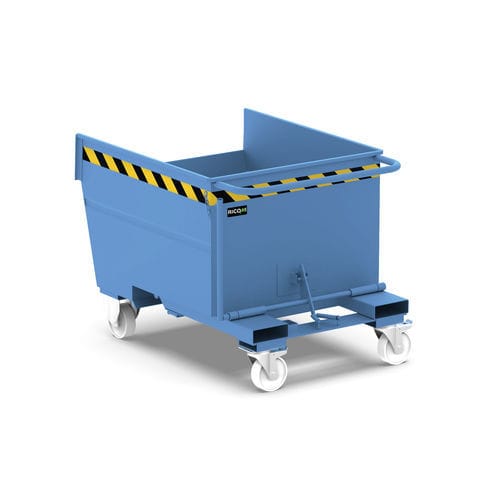

Steel self-dumping hopper LT500

metalindustrial wastefor waste

Overview
Tilt bin for collection and discharge of waste and scrap, 500 L version. Designed to optimise collection, internal handling and discharge of machining swarf, chips and metal scrap for industrial use.

Key data
Dimensions (mm): 1350 × 920 × 910
Load capacity: 1000 kg
Volume: 490 L

Main features

• Operator-actuated tipping lever allows safe discharge from the forklift without the operator leaving the cab
• Manoeuvrable also by hand thanks to four wheels Ø 150 mm (2 fixed + 2 swivel with brake)
• Forklift entry box section, internal dimensions: 170 × 50 mm
• Available in multiple RAL colours for waste stream identification
• Optional: liquid-tight basin, settling grid and drain tap

Applications and benefits
Suitable for collection, handling and discharge of industrial waste materials (swarf, chips, scrap). Optimises internal logistics, reduces handling time and improves operational safety.

Technical specifications

• Series: LT500
• Model / SKU shown: LT500#5012
• Construction: painted metal structure (standard version)
• Wheels: 4 × Ø 150 mm (2 fixed, 2 swivel with brake)
• Fork pockets (internal): 170 × 50 mm
• Available colours: RAL2004 (Orange), RAL5010 (Blue), RAL5012 (Light blue), RAL7000 (Grey), RAL6011 (Green)
• Options on request: liquid-tight basin, settling grid, drain tap
