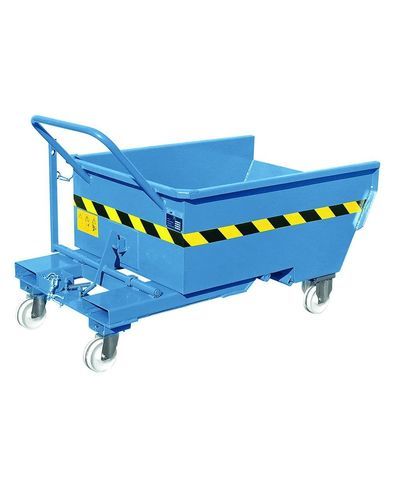

Waste self-dumping hopper LT300

for forkliftsliftingcompact

Overview
Floor-mounted tipping container with nominal capacity 300 L (technical volume 285 L), designed for collection, internal handling and discharge of waste, machining swarf and scrap. Suitable for forklift handling and manual repositioning on wheels. Optional configurations include a liquid-tight basin, settling grid and drain tap.

Short description
Compact tipping hopper for waste/scrap handling. Dimensions: 1350 × 820 × 650 mm. Load capacity: 600 kg. Fork pocket internal dimensions: 170 × 50 mm. Emptying via operator-actuated lever compatible with operation from a forklift. Mobility via 4 wheels (2 fixed + 2 swivel). Note: nominal capacity indicated in the title is 300 L; technical volume shown in the datasheet is 285 L.

Key features

• Operator-actuated emptying lever allowing discharge without leaving the forklift
• Easy manual movement thanks to 4 wheels (2 fixed, 2 swivel)
• Fork pocket (internal): 170 × 50 mm for secure forklift engagement
• Available in multiple RAL colours to identify waste streams
• Optional on request: liquid-tight basin, settling grid, drain tap for liquid discharge

Attributes
Dimensions: 1350 × 820 × 650 mm
Colours: Orange RAL2004; Blue RAL5010; Blue RAL5012; Grey RAL7000; Green RAL6011
Length: 1350 mm
Width: 820 mm
Height: 650 mm

Technical specifications

• Model: LT300
• Nominal capacity (title): 300 L
• Technical volume: 285 L
• Load capacity: 600 kg
• Dimensions (L×W×H): 1350 × 820 × 650 mm
• Fork pocket (internal): 170 × 50 mm
• Emptying system: operator lever (compatible with forklift operation)
• Wheels: 4 (2 fixed, 2 swivel)
• Options on request: liquid-tight basin, settling grid, drain tap
• Available colours: Orange RAL2004; Blue RAL5010; Blue RAL5012; Grey RAL7000; Green RAL6011
