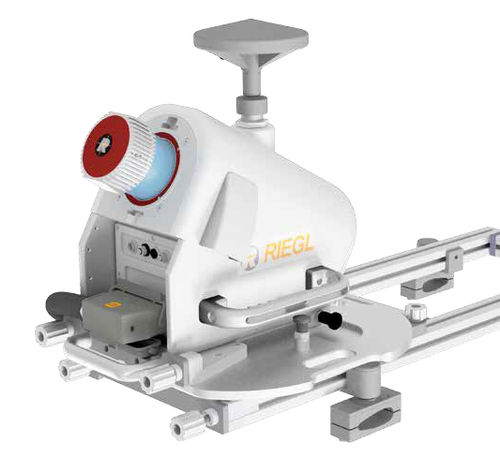

2D scanning system VMQ-1HA

laserfor mining applications

The RIEGL VMQ-1HA is a compact, economically priced High-Speed Single Scanner Mapping System, well suited for a variety of mobile mapping applications. The system consists of a compact measuring head with a quick release system for convenient mounting. A swivel plate enables multiple mounting angles in order to optimize the field of view of the system. The optional integration of up to four cameras allows simultaneous acquisition of imagery to complement the captured LiDAR data. The central part of the system is the fully integrated RIEGL VUX-1HA-22 LiDAR sensor providing 1.8 million measurements and up to 250 scan lines per second for an outstanding performance in mobile applications. Main Features - high laser pulse repetition rate of up to 1.8 MHz - 250 scan lines per second - Range 475 m - Eye safe operation at Laser Class 1 - Field of view 360° - Multiple target capability - Optional integration of up to 4 cameras Main Applications - Transportation Infrastructure Mapping - Road Surface Measurements - HD Mapping for Autonomous Vehicles - City Modeling - Rapid Capture of Construction Sites and Bulk Material - As-Built Surveying - GIS Mapping and Asset Management -Surveying in Open-Pit Mining
