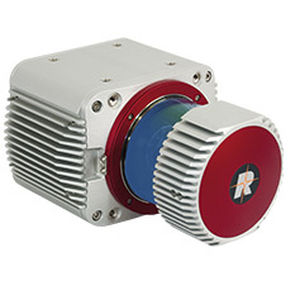

3D scanner VUX-1HA
profilelasercompact

3D scanner
3D scanner
Add to favorites
Compare this product


Characteristics

Number of axes
3D
Applications
profile
Technology
laser
Configuration
compact, portable
Other characteristics
rugged

Description

RIEGL VUX-1HA The VUX-1HA High Accuracy is a very lightweight, compact and rugged laser scanner, that is easily mountable to whatsoever type of moving platform. The sensor meets the challenges of terrestrial mobile data acquisition in both measurement performance and in system integration. It is designed to be mounted in any orientation and even under limited space conditions and is perfectly suited for challenging survey missions based on cars, trains, robots, etc. The "full circle" Field of View (FOV) of 360°, a very high laser pulse repetition rate of more than 1 MHz as well as an accuracy of 5 mm allow for excellent measurement results in road mapping and rail mapping applications, as well as in tunnel profile measuring. Main Features 5 mm survey-grade accuracy scan speed up to 250 scans / second measurement rate up to 1,000,000 meas./sec "full circle" field of view of 360° for unrestricted data acquisition regular point pattern, perfectly parallel scan lines cutting edge RIEGL technology providing - echo signal digitization - online waveform processing - multiple-time-around processing multiple target capability - practically unlimited number of targets echoes NEW Smart Waveform Data Output optional compact (227x180x125 mm), lightweight (3.5 kg), and rugged easily mountable to whatsoever type of moving platform mechanical and electrical interface for IMU mounting electrical interfaces for GPS data string and Sync Pulse (1PPS) LAN-TCP/IP interface scan data storage on internal 1TByte SSD Memory Main Applications Indoor and Outdoor Laser Mobile Mapping Tunnel Profile Measurements Railway Applications like Clearance Analysis, etc. Road Surface Measurements
