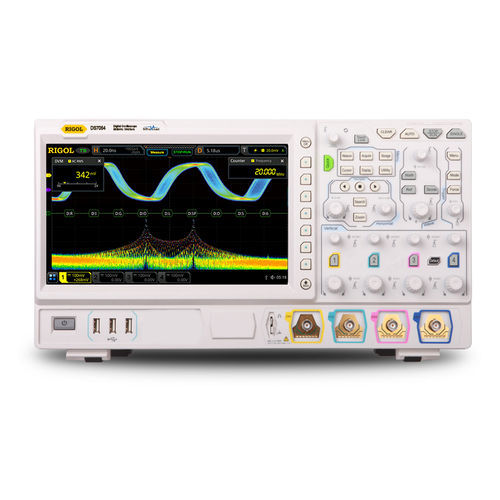

Digital oscilloscope MSO/DS7000 series

mixed-signalbench-top

The MSO/DS7000 series digital oscilloscope is a mid-end mixed-signal digital oscilloscope based on RIGOL's proprietary intellectual property ASIC chip and UltraVision II technology platform. 7 instruments in 1 Combine an Oscilloscope, Logic Analyzer, Protocol Analyzer, Waveform Generator, Voltmeter, and Counter/Totalizer in one instrument to quickly find answers to your measurement challenges. Long Record Length (100M std/500M opt) Find elusive problems in complex digital streams with long acquisitions at high sample rates. Flexible user interface combining touch, mouse, knob/button, web, and remote control With a 10.1 inch touchscreen, full set of knobs and buttons, and mouse support the 7000 makes it easy to analyze signals whichever way works best in your lab. The included interactive browser control allows interactive control from a phone or tablet. PC software provides remote operation and control. The programming interface makes it possible to automate complex test sequences. Protocol Analysis for today’s common serial communication buses Trigger, decode, and visualize serial bus traffic to speed analysis and debug of Embedded Serial Bus designs. Full Memory Hardware Measurement No longer limited to the waveform effects visible on the screen, the results can still be accurately obtained for multi-cycle high-frequency signal testing. Over 600K wfms/s Waveform Capture rate Minimize scope “dead time” between trigger events and increase observations of random and sporadic events.
