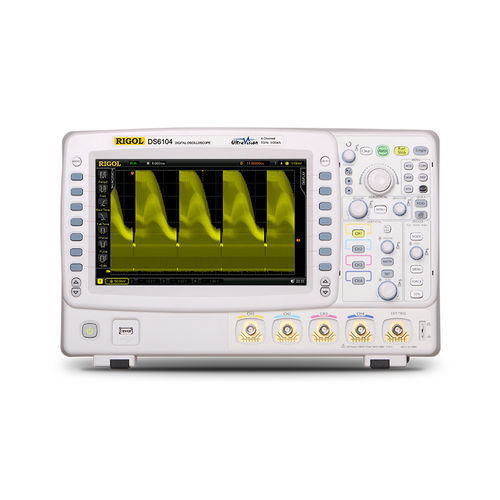

Analog-digital oscilloscope DS6000 Series

differentialbench-top4-channel

The 6000 Series Digital Oscilloscopes have 1 GHz of Bandwidth. Detecting high speed signals and device characteristics including ESD, digital video, and differential signals (using an differential probe accessory) is now easier than ever with our most advanced digital oscilloscope platform. Waveform Record and Playback Debug occasional and random glitches using our fast capture, playback, and onboard analysis capabilities. Waveform Template Test Function Standard template test function, with Pass/Fail statistics, error stop and alarm functions, convenient for production line testing and long-term monitoring applications Up to 180,000 wfms/s Waveform Capture rate Minimize scope “dead time” between trigger events and increases observations of random and sporadic events Intensity Color graded display Observe and highlight signal anomalies even when obscured by other signals 140Mpts Standard Record Length Long acquisitions at high sample rates help debug elusive problems in complex digital streams
