Centrifugal pump RW 250 Ewaterelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Mobility
- stationary
- Applications
- high-pressure, for boreholes, for drilling
- Other characteristics
- with frequency converter, with variable-speed controller, soundproof
- Flow
Max.: 14.4 m³/h
(63.40129 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Pressure
Max.: 190 bar
(2,755.717 psi)Min.: 0 bar
(0 psi)- Power
90 kW
(122.37 hp)- Length
2,050 mm
(81 in)- Width
987 mm
(38.86 in)- Height
1,242 mm
(48.9 in)- Weight
2,050 kg
(4,519.48 lb)
Description
Description

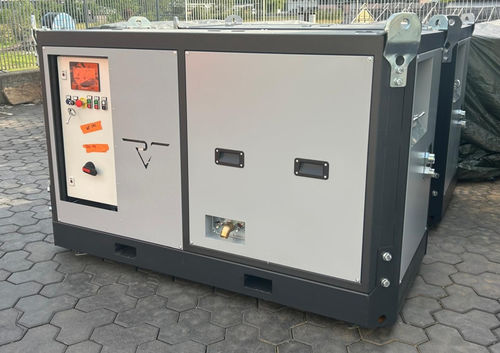

High-pressure pump RW 250 E with a 90 kW electric motor designed to supply down-the-hole (DTH) water hammers. Equipped with an inverter for speed control, the pump has preset speed settings according to the hammer used, providing operational compatibility and precise flow control.
Features
Specifications / Technical data
High-pressure pump RW 250 E with a 90 kW electric motor designed to supply down-the-hole (DTH) water hammers. Equipped with an inverter for speed control, the pump has preset speed settings according to the hammer used, providing operational compatibility and precise flow control.
Features
- Maximum flow: 240 L/min
- Maximum pressure: 190 bar
- Control cable extension on reel: 50 m
- Silenced version
- Inverter regulation with preset speed
Specifications / Technical data
- Model: RW 250 E
- Motor: electric 90 kW
- Application: down-the-hole water hammers (DTH)
- Flow: up to 240 L/min
- Operating pressure: up to 190 bar
- Control extension: 50 m on reel
- Option: silenced version
