Dock seal PitMaster® X

Overview

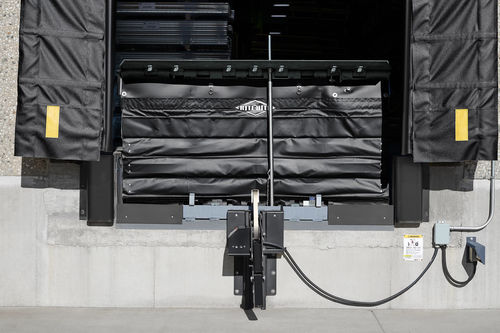

PitMaster® X installs beneath pit-style dock levelers to close the gap between the leveler deck and pit front, creating an enclosed dead-air cavity that reduces heat transfer and prevents contamination ingress. The system forms a sealed interface between the leveler underside and pit supports while remaining accessible for maintenance.

Key Benefits

• Energy savings: Seals gaps not addressed by conventional dock seals or shelters to limit the exchange of hot and cold air through the leveler pit and deck.
• Thermal insulation: Dead-air cavity beneath the leveler improves thermal resistance to retain conditioned air inside the facility.
• Continuous protection: Provides energy and contamination control whether a trailer is present or not.
• Helps maintain pit cleanliness by reducing accumulation of dust, debris and pests in the leveler pit.
• Optional accessory seals (Lip Corner Seals, Filler Pads, Lip Hinge Seals) further reduce daylight and air gaps to assist inspections and increase savings.
• Standard 12-month parts and labor warranty plus a limited 12-month money-back satisfaction guarantee.

Design and Materials
The PitMaster® X is engineered for pit-style levelers. Main and header curtains are fabricated from 22 oz vinyl fabric attached to foam support triangles and to the leveler underside to form an overlapping sealed system that resists normal dock impacts and allows curtain removal for service.

Applications

• Designed for pit-style dock leveler installations.
• Suitable for sectors requiring environmental separation, improved sanitation and energy efficiency: automotive; food & beverage; warehousing & distribution; pulp, paper & packaging; pharmaceutical; and cold storage/freezer docks.
• Compatible with Rite‑Hite pit-style levelers and many competitive pit-style levelers.

Operational Notes

• Curtains can be moved or removed to allow pit cleaning and leveler maintenance.
• Protected from typical trailer impacts and designed for no routine maintenance under normal operating conditions.
• Rated for low-temperature operation to -40°F, suitable for cold storage and freezer dock environments.

Technical specifications

• Main curtain attaches to foam support triangles installed in the pit.
• Header curtain mounts to the underside of the leveler and overlaps the main curtain to seal the interface.
• Components constructed of 22 oz vinyl fabric tested for abrasion resistance and tear strength.
• Designed to withstand temperatures down to -40°F (-40°C).
• Curtains removable or movable for maintenance and pit cleaning; protected from trailer impacts.
• Optional seals available: Lip Corner Seals, Filler Pads, Lip Hinge Seals to further reduce daylight gaps.
• Warranty: 12 months parts and labor; limited 12-month money-back satisfaction guarantee.
