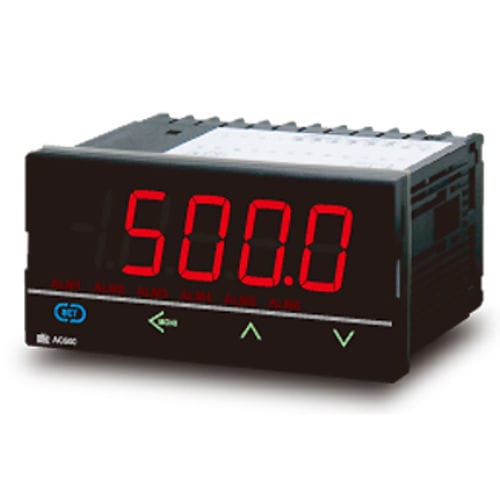

Temperature indicator AG500

with LED display5-digit

Measurement accuracy: ±0.1% of displayed value Sampling time: 0.1 sec. Digital outputs: 6 points (optional) Analog output: 1 point (optional) External contact input: 2 points (optional) Communication function: Optional Plug-in construction PV and Alarm symbols are displayed alternately under the alarm occurrence. This indicator can be supplied with a maximum of 2 external contact inputs, 6 digital outputs, 1 analog input, and communication function. All of these functions are available simultaneously. Built-in power supply for sensor is available. ※When a power supply for sensor (24V DC) is supplied, the maximum number of alarm outputs is 2 points. ※When a power supply for sensor (12V DC) is supplied, the maximum number of alarm outputs is 5 points.
