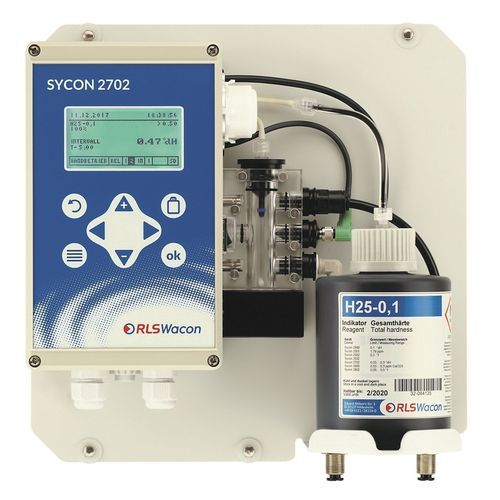

Water analyzer SYCON 2702

monitoringfor the food industrypower plant

The entry-level model for high demands: For optimal use at a softening plant or to protect a reverse osmosis, the limit value to be monitored and the measuring interval can be freely programmed. In addition, relay contacts and a 4 ... 20 mA interface enable connection to a variety of control systems. The special features of the SYCON 2702 analyser include: Simple commissioning by means of an installation wizard Menu guidance in German, English, Italian, French, Spanish, Russian, Polish, Dutch and Danish. Optional measurement of total or carbonate hardness by selecting the indicator used Freely programmable limit value within the measuring range of the indicator used. Low indicator consumption, especially when operating on a soft water line Low maintenance due to peristaltic pump technology and flushing of the measuring cell with line pressure Self-calibrating against extraneous light, contamination and turbidity of the water sample Reliable due to self-diagnosis and plausibility monitoring of sensor data during analysis Diagnostic programme for all modules Documentation of all measurement results on an SD card Maintenance-free full-colour sensor Tool-free maintenance of the measuring chamber The SYCON 2702 is available for 230V AC or 24V AC/DC supply. It can be supplied on a wall bracket as well as in a closed housing.
