Water analyzer SYCON 2802

monitoringprocessfor the food industry

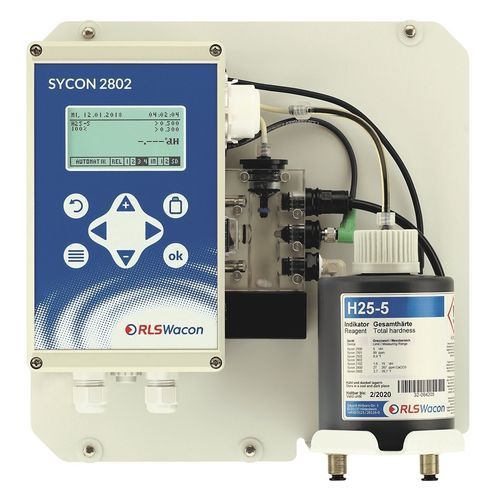

The SYCON 2802 is a titration device for measuring water hardness or carbonate hardness. Compared to the SYCON 2702, the online analysis device has two more relays, which makes a large number of new connection variants possible. There is also an RS485 interface with Modbus RTU protocol and another input contact. An additional, programmable second limit value enables the monitoring of a water intersection or a pre-alarm. The additional relay contacts make it possible to control an external cooling water valve for a sample cooler. Monitoring of a freely programmable limit value Measurement of residual hardness, total hardness or carbonate hardness (acid capacity) Graphic display, menu navigation in German, English, Italian, French, Spanish, Russian, Polish, Dutch and Danish. Easy commissioning using the installation assistant Documentation of all measurement results on an SD card Low maintenance effort thanks to hose pump technology and rinsing of the measuring cell with line pressure Self-calibrating against extraneous light, dirt and turbidity in the water sample Reliable through self-diagnosis and plausibility monitoring of the sensor data during the analysis Maintenance-free full-color sensor Ports: 4 potential-free outputs: Limit exceeded Exceeding the limit value / falling below the limit value / low indicator level
