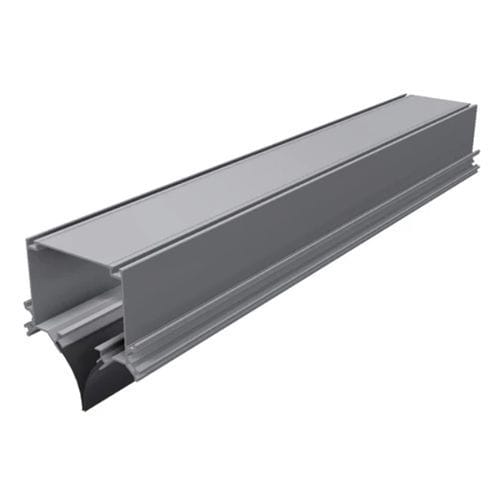

Exhaust gas extraction rail GAT1

Overview
Modular extruded aluminium overhead extraction rail in 4 m sections designed for exhaust gas extraction in industrial workshops. Supplied with rubber lips for simple installation and an external sliding rail positioned outside the extraction channel to extend sliding elements service life. Equivalent section 160 mm2 (equivalent diameter 160 mm) for a maximum airflow of 1600 m3/h. Total weight 24 kg.

Applications

• Exhaust gas extraction systems for workshops and industrial facilities
• Modular continuous extraction lines and assembly stations

Technical specifications

• Model: GAT1
• Material: extruded aluminium
• Module length: 4000 mm (4 m sections)
• Equivalent section: 160 mm2
• Equivalent diameter: 160 mm
• Maximum airflow: 1600 m3/h
• Total weight: 24 kg
• Rubber lips: provided, easy to install
• Sliding rail: external to extraction channel to extend sliding elements life
