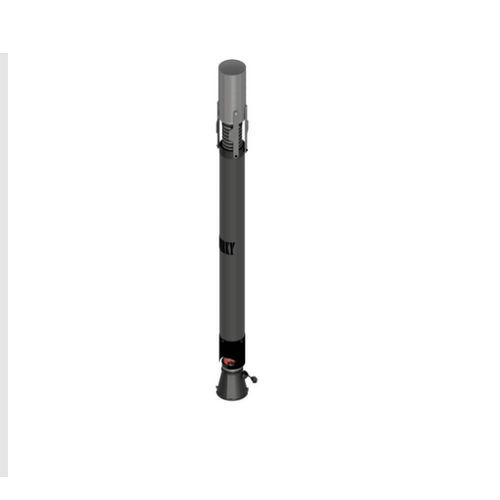

Telescopic bar GTD-100 GRN

Overview
The GTD-100 GRN telescopic lowering unit is designed for localized extraction of vehicle exhaust gases. It integrates a 5 m hose with an adapter for connection to the vehicle exhaust pipe. The hose is stored in a rigid, slightly tilting drop section and can be extended to the required length. Closing the adapter valve activates an automatic retraction mechanism that draws the hose back into the vertical structure via the integrated suction system. Once the adapter is placed in its holder, the extraction fan can be switched off and the system stored outside the work area.

Options

• GSQEDRC remote control to switch the fan on/off directly from the point of use (optional)

Key features

• Integrated 5 m hose with adapter for vehicle exhaust connection
• Hose housed in a rigid, slightly tilting drop section
• Extendable to desired length
• Adapter valve triggers automatic hose retraction
• Integrated suction system for controlled retraction
• Adapter holder for storage outside the work area
• Compact, space-saving vertical structure

Applications

• Vehicle maintenance and inspection bays
• Workshop and service stations requiring local exhaust extraction
• Fleet maintenance facilities and inspection lines

Technical specifications

• Model: GTD-100 GRN
• Product type: Telescopic lowering unit for exhaust extraction
• Hose length: 5 m
• Adapter: included, for vehicle exhaust pipe connection
• Drop section: rigid, slightly tiltable
• Retraction mechanism: automatic, activated by adapter valve
• Suction: integrated to retract hose into vertical structure
• Option: GSQEDRC remote control (fan on/off)
