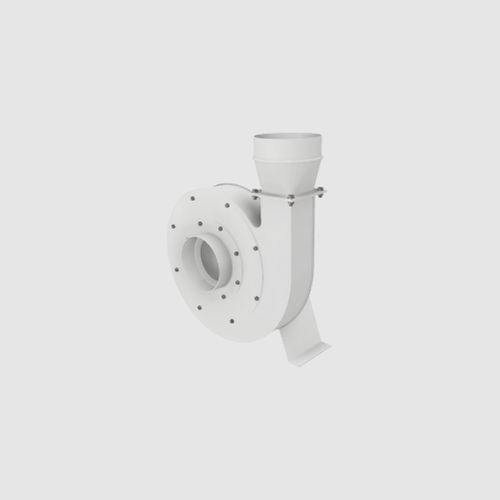

Centrifugal fan GSA R

wall-mountedfume exhaustexhaust

Product description
The GSA R centrifugal electric fans are engineered to evacuate exhaust gases and fumes from particularly long or narrow installations. The casing is manufactured in epoxy powder coated sheet steel. The unit features a directly coupled motor, an impeller balanced both statically and dynamically, inlet and outlet flanges sized to the fan's optimum capacity, and support feet for wall or ceiling mounting. The range delivers very high pressure, making it suitable for demanding suction systems where high performance is required.

Key features

• Designed for evacuation of exhaust gases and fumes in long or narrow ducts and installations
• Casing in epoxy powder coated sheet steel
• Directly coupled motor for compact installation
• Impeller balanced statically and dynamically for smooth operation
• Inlet and outlet flanges sized to optimum fan capacity
• Support feet for wall or ceiling mounting
• High-pressure performance for challenging suction applications

Technical specifications

• Product type: centrifugal exhaust fan (model GSA R)
• Construction material: epoxy powder coated sheet steel
• Motor: directly coupled
• Impeller: statically and dynamically balanced
• Connections: inlet and outlet flanges dimensioned to performance
• Mounting: support feet for wall or ceiling mounting
• Application: evacuation of exhaust gases and fumes in long/narrow installations and high-pressure suction systems
