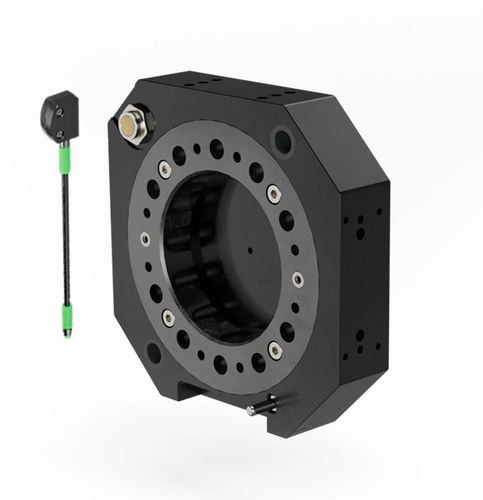

Robotic tool changer TA480-1

pneumatic

Prepered for safety Modular design External signals Wide range of media modules – simple to customize Designed to meet bodyshop application demands Tool changing ability The RSP tool changers are designed to maximize the flexibility and reliability of your robot fleet. They offer the possibility to enhance your robot application by allowing it to switch between different tools, such as grippers, weld units, fixtures etc. Tool changers from RSP are robust and can manage continuous changing operations with maintained reliability and safety. Depending on model and options, electrical signals, weld and servo power, data, water, and compressed air can be transferred from the robot side to the tool. All our tool changers feature the patented locking device, TrueConnect™. It reduces play to the minimum and enables absolute alignment repeatability throughout its lifespan. With its unique design, it does not require exact alignment before docking with different tools. Mechanical interface - ISO 9409-1 160-10-M10 Robot payload - 480 kg | 1060 lb Fz - ± 5000 N | ± 1100 lb Mz - ± 2500 Nm | ± 22100 lbf·in Mx/My - ± 5000 Nm | ± 44000 lbf·in Weight - 8.0 kg | 17.64 lb Height - 50 mm | 1.97 in Air channels available to tool - 1, Additional channels can be added with external media module Air connection, outlet - G 1/2" Air flow per channel - 2000 l/min | 70.6 CFM Max air pressure - 10 bar | 145 psi Air quality - Oil-clean and waterless filtered air, with max 25µm particle content IP Class - IP 54 Working temperature - +10°C – +50°C | 50 °F – 120 °F
