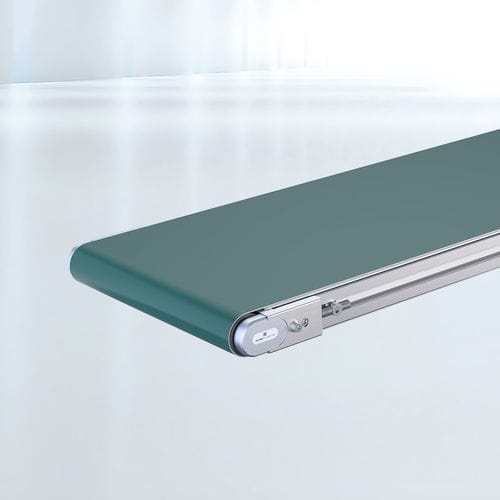

Belt conveyor C4NhorizontalinclinedZ type
Add to favorites
Compare this product
Characteristics
- Technology
- belt
- Form
- horizontal, inclined, Z type
- Function
- transport, discharge, accumulation, positioning, feeding, buffer
- Construction
- modular, flexible
- Drive mechanism
- electric drive, automatic, timing belt, non-motorized, drum motor, central drive
- Transported product
- for bulk materials, for cardboard boxes, for packaging, for vessels
- Applications
- for process applications
- Sector
- for logistics, for assembly lines, for the plastics industry
- Options and accessories
- with integrated filtration, with manual length stop positioning, with feed hopper
- Other characteristics
- custom-made, sturdy, variable speed, drag, vacuum
- Maximum load
Max.: 240 kg
(529.109 lb)Min.: 0 kg
(0 lb)- Speed
Max.: 55 m/min
Min.: 3 m/min
- Effective width
Max.: 1,200 mm
(47 in)Min.: 40 mm
(2 in)- Length
Max.: 12,000 mm
(472.44 in)Min.: 400 mm
(15.75 in)
Description
Configure and purchase your Belt Conveyor according to your requirements: Our Modular Automation System allows for a free choice of belt types, customized positioning of the drive and the selection of the conveying speed. You can add a sturdy stand, flexible side guides and other elements from our Modular Automation System.
Facts:
• free choice of dimensions, belt properties, belt speed as well as drive and idler options
• short lead times for express orders: shipment after only 5 working days
• configure and download CAD data
Benefits:
• customized solutions at the best price-performance ratio
• fast deployment and return on investment
• time savings in calculation, design and ordering
Special features:
• The belt conveyor can be configured according to individual needs. Various belt properties such as suitability for accumulation or cut resistance are available.
• Certain dimensions of our belt conveyor comply with the EN ISO 14644 standard for clean rooms.
• Our product specialists are happy to help you with your projects.
----------Belt Conveyor 40----------
Application:
for transport tasks of all kinds
• conveyor frame height 40mm
• frame widths from 40mm to 400mm
• standard lengths up to 12m
Design options:
• horizontal conveyor
• inclined conveyor with horizontal infeed section
• inclined conveyor with horizontal discharge section
• incline conveyor with horizontal infeed and discharge section
Drive options:
• front end direct drive
• front End Timing Belt Drive
• center drive with timing belt
Idler options:
• roller deflection
• nose bar deflection
