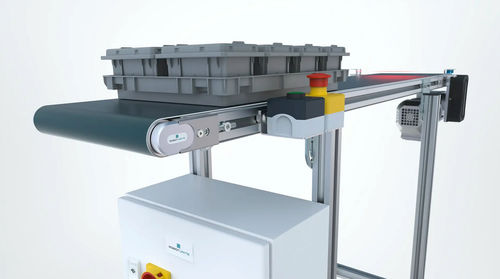

Automatic machine conveyor system

for industrial applicationsfor robotsfor control panels

Overview

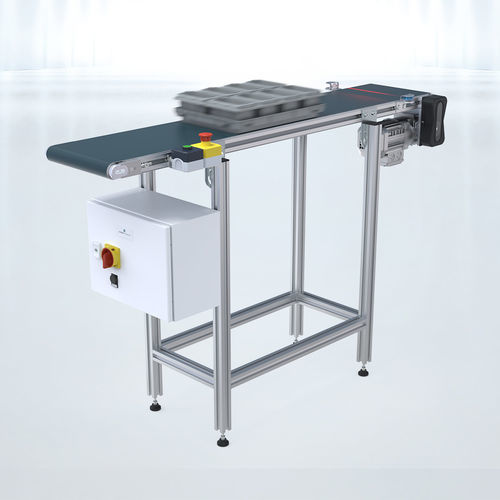

Turnkey conveyor systems comprising belt, timing-belt and modular-belt conveyors delivered with matched control system and control cabinet for immediate plug-and-play use. Systems are designed for part and tote handling, integration with cobot and automation cells, and configured for start/stop, indexing and accumulating operation.

Conveyor types

• Belt conveyors — customizable dimensions, belt types and drive configurations (head belt drive, direct head drive, center drive).
• Modular belt conveyors — flexible layouts: straight sections, curves and inclines; suited for heavy loads and accumulation.
• Timing-belt conveyors — precise positioning and high repeatability for indexing and positioning tasks.

Control & operation modes

• Plug-and-play supply: conveyors delivered with configured control cabinet and control logic for rapid installation and commissioning.
• Start/stop operation: control via selector switch, manual start button, start sensor (light barrier) or external customer signal.
• Indexing operation: controlled product indexing and positioning for downstream processes.
• Stop/start logic variants: stop sensor (interrupted end light barrier), start sensor (uninterrupted end barrier), timed start (belt run time control) and customer-signal driven start/stop.
• Optional emergency-stop integration and safety interfaces.

Application example

• Typical use: small parts or tote placement on a modular belt conveyor detected by a start sensor; conveyor transfers parts to a cobot or processing station. The control cabinet logic module manages runs, indexing and external interfaces (robot/cobot signals, customer I/O).

Components & options

• Control cabinet with logic module (included in turnkey delivery).
• Drive options: belt-driven head, direct head drive, center drive and custom layouts.
• Sensor options: photoelectric sensors/light barriers, proximity sensors, start/stop buttons, selector switches and customer-signal interfaces.
• Mechanical options: straight, curved and inclined sections; 90° transfer units, diverters, stands and substructures.
• Accessories: speed controllers, 24 V power supplies, encoders, connection hubs and conveyor-technology accessories.

Technical specifications

• Delivery scope: conveyor hardware per specification, matched control system and control cabinet for plug-and-play operation.
• Operational modes: continuous, start/stop, timed run, indexing (positioning) and accumulating.
• Supported sensors: light barriers, proximity sensors, manual start buttons, selector switches and external customer signals.
• Mechanical modularity: combinations of straight, curved and inclined sections; modular belts for heavy loads and accumulation.
• Drive configurations: multiple drive positions and timing-belt options for precise indexing.
• Integration: designed to interface with cobot stations and other automation modules for pick-and-place and processing workflows.
• Compliance: components provided with applicable conformity markings (e.g. CE where required).
