Inclined conveyor

with adjustable slopeZ typeL

Overview
Angled-frame conveyor technology transports bulk material between different levels. The inclination angle is configured to project requirements. Custom cleats and side guides secure material retention and ensure stable conveying in inclined sections.

Configuration
Configure Z- or L-shaped conveyors quickly using a modular system. Options include cleat type, cleat spacing and side-guide placement to suit particle size, flow characteristics and layout constraints. The conveyor is adaptable for integration into automated production lines.

Your benefits

• Design flexibility for varied layouts
• High process reliability through tailored cleats and guides
• Cost-effective solution within the Robotunits Modular Automation System

Visuals / Illustrations

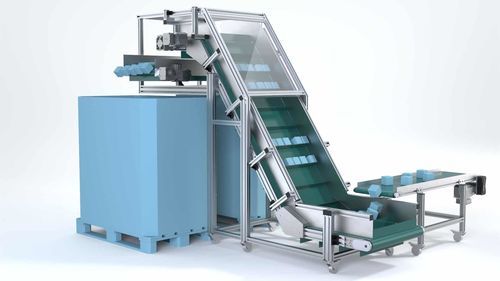

Images show Z- and L-shaped conveyors with cleats and side guides for bulk transfer between levels, plus examples of cleat configurations and side-guide positions.

Technical characteristics / specifications

• Application: transfer of bulk material between different levels
• Configurations: Z-Conveyor and L-Conveyor (angled/stepped conveyors)
• Inclination angle: configurable to project requirements
• Conveying elements: customizable cleats to retain bulk material during incline
• Guidance: optional side guides for secure product guidance
• Integration: designed for integration with the Robotunits Modular Automation System
• Typical use case: steep or multi-level bulk-material transfer where retention during incline is required
