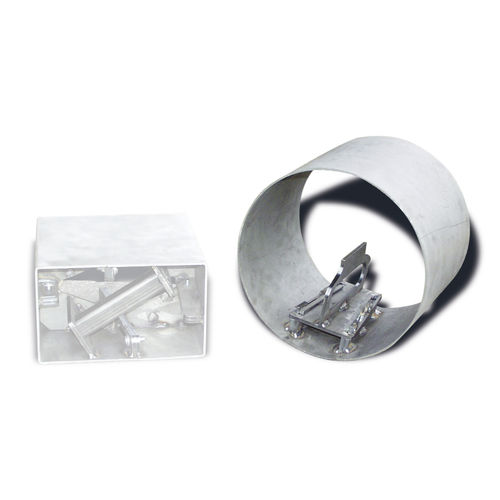

Circular formwork system FLEX

framewallslab

Recyclable and reusable formwork for high numbers of uses ● Round and rectangular shapes can be produced ● Simple and inexpensive production of cut-outs and openings in beams, walls and ceilings ● Easy attachment with a central anchor rod ● Clean sealing and chamfered concrete edge thanks to triangular rubber lips on both sides ● Fast, non-destrructive removal ● Removable sealing lips make cleaning easy ● No remaining parts in the concrete – no risk of corrosion due to rust The special technical feature of this construction is that the cut-out body by a special wedge mechanism can shrink with a circumference of several millimeters. This causes the formwork surfaces to detach from the concrete on all sides and the box can be removed non-destructively without constraints. The reusable formwork bodies are made in acordance with the order to the desired size. The feasible minimum dimension sare approx. Ø 200 mm for round tubes or approx. 150 mm edge length for angular ones boxes. The maximum possible lengths depend on the respective outer dimensions. For particularly thick beams, 2 FLEX pipes are added arranged one above the other. The use of these special formwork elements in the precast plant or on site becomes interesting if sufficient large numbers of breakthroughs are to be produced and therefore the lost components become more expensive. We would be happy to make you an offer so that depending on your demand for formwork tubes we can calculate a cost comparison.
