Core drilling drilling rig ECOMOBIL-432
explorationrotaryhydraulic

core drilling drilling rig
core drilling drilling rig
core drilling drilling rig
core drilling drilling rig
core drilling drilling rig
core drilling drilling rig
core drilling drilling rig
Add to favorites
Compare this product


Characteristics

Drilling type
core drilling
Function
exploration
Drilling unit
rotary
Other characteristics
hydraulic, pneumatic
Drilling diameter

102 mm (4 in)

Drilling depth

30 m (98'05")

Machine weight

240 kg (529 lb)

Description

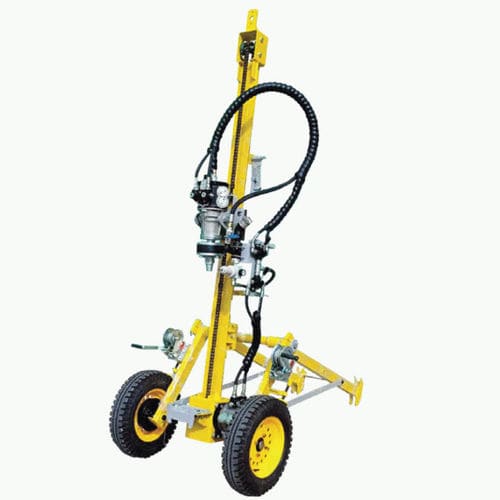

ECOMOBIL-432 The Ecomobil 432 is a wagon type, 100% pneumaticdrilling rig which can be easily moved or towea using its two tires. Additionally, a 3rd tire can be used for ease ofmovement. it is designed for drilling with DTH hammer or rotary drag bits up to a depth of30 meters using 40, 60 or 76 mm DTH drill rods. Depending on geological formations, compressor capacity, ski II ofthe operator and weight ofthe tools being used greater or less depths may be achieved. OPTIONAL: -PNEUMATIC DRIFTERS -PNEUMATIC ROTARY HEADS -HYDRAULIC ROTARY HEADS -FEED SYSTEMS -AIR LINE LUBRICATORS -REMOTE CONTROL PANELS -SHOCKABSORBERS Rig performance is directly related to the geological conditions, operator ski Ils, tools being used and other variables. Rig spécification presented here are under factory test conditions and Rockdril reserves the right to change design, prices and terms at any time without notification or obligation.
