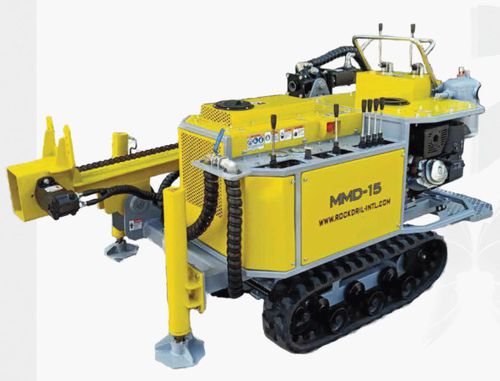

Core drilling drilling rig MMD-15
crawlerself-propelledrotary

core drilling drilling rig
core drilling drilling rig
core drilling drilling rig
core drilling drilling rig
core drilling drilling rig
core drilling drilling rig
core drilling drilling rig
Add to favorites
Compare this product


Characteristics

Drilling type
core drilling
Mobility
crawler, self-propelled
Drilling unit
rotary, down-the-hole
Other characteristics
hydraulic
Drilling diameter

102 mm
(4 in)

Drilling depth

30 m
(98'05" )

Machine weight

550 kg
(1,212.5 lb)

Description

MMD-15 The MMD-15 is a self-propelled mini hydraulic drilling rig suitable for drilling with down the hole hammer and/or rotary drag bits. The MMD-15 is capable of drilling up to 30 meters in 76mm diameter, greater depths may be achieved depending on the geological formation, compressor capacity, operator ski II and weight ofthe drill tools being used. It is the idéal rig when drilling is needed in difficult access areas. OPTIONAL MODIFICATIONS -Pneumatic rotary heads -Pneumatic drifters -Hydraulic rotaty heads -Feed Systems -Air line lubricators -Control panels -Power-packs Rig performance is directly related to the geological conditions, operator skills, tools being used and other variables. Rig spécification presented here are under factory test conditions and Rockdril reserves the right to change design, prices and terms at any time without notification or obligation.
