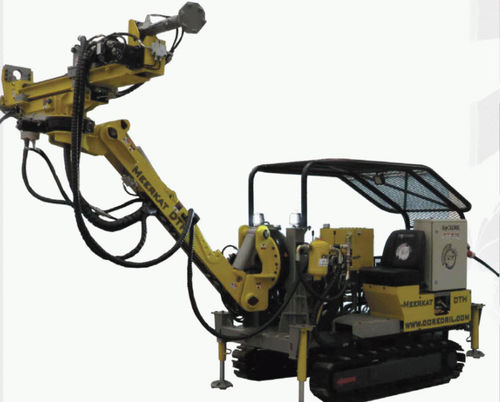

Core drilling drilling rig MEERKAT-DTH
crawlerrotaryhydraulic

core drilling drilling rig
core drilling drilling rig
core drilling drilling rig
core drilling drilling rig
core drilling drilling rig
core drilling drilling rig
core drilling drilling rig
Add to favorites
Compare this product


Characteristics

Drilling type
core drilling
Mobility
crawler
Drilling unit
rotary
Other characteristics
hydraulic
Drilling diameter

100 mm (4 in)

Drilling depth

80 m (262'05")

Machine weight

3 t (3 us ton)

Description

The Meerkat DTH is a fully hydraulic drilling rig designed for drilling in underground locations with capacity to drill in any position and angle in tunnels of Minimum dimensions ofH:2.2m by W:1.5m. The Meerkat DTH is capable ofhandlinglm rods and can be mounted on wheels using hydraulic drive for easy portability or using hydraulic crawlers for better traction. It has an electric power source thus eliminating environmentally unfriendly toxic combustion gases. It is equipped with a powerful hydraulic rotary head, capable of drilling efficiently up to a depth of80 meters in 76mm (optimal diameter) depending on the geological formation, ability of operator and the weight of the tools being used as well as the drill diameter. OPTIONAL MODIFICATIONS(bolt-on) -Pneumatic Drifter -Hydraulic Drifter -2.4m drill rod mast with center rod guide -1.8m drill rod mast -1.2m drill rod mast -0.6m drill rod mast with hydraulic clamp Rig performance is directly related to the geological conditions, operator skills, tools being used and other variables. Rig spécification presented here are under factory test conditions and Rockdril reserves the right to change design, prices and terms at any time without notification or obligation.
