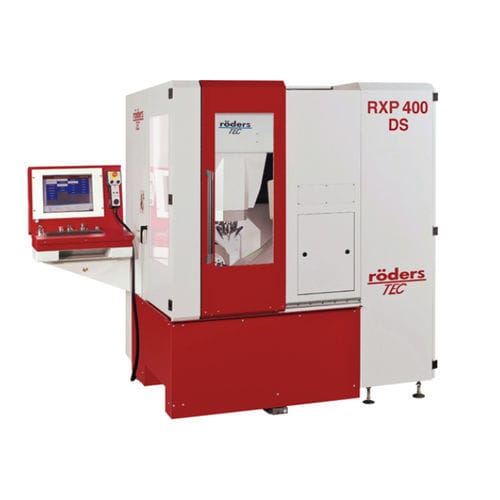

5-axis CNC machining center RXP400DS verticalHSK-E32HSK-E 25
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-E32, HSK-E 25
- Number of tool stations
- 40 tools, 16 tools, 70 tools
- Applications
- for the mold industry, for small parts production
- Other characteristics
- high-precision, for micro-machining
- X travel
310 mm
(12 in)- Y travel
294 mm
(12 in)- Z travel
210 mm
(8 in)- Rotational speed
40,000 rpm, 50,000 rpm
(251,327 rad.min-1, 314,159 rad.min-1)- Work feed X-axis
Max.: 42,000 mm/min
(28 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Y-axis
Max.: 42,000 mm/min
(28 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Z-axis
Max.: 42,000 mm/min
(28 in/s)Min.: 0 mm/min
(0 in/s)- Table load capacity
15 kg
(33 lb)- Weight
3.2 t
(3.53 us ton)- Overall length
1,930 mm
(76 in)- Overall width
2,515 mm
(99 in)- Overall height
2,080 mm
(81.9 in)
Description
Highly precise micro-machining
Applicable for all materials
Electrodes, small moulds, watches etc.
Very efficient due to high stiffness and optimum layout of the mass inertia
Two-sided support of the C‑axis for high stability and precision
High resolution optical encoders in all axes
Powerful wear-free direct drives in all axes
Special Röders 5‑axis geometry compensation for high precision, also at long lasting machining operations
Precise temperature control of the machine elements
For dynamic decoupling, the swivelling direction is at right angles to the X axis
Windows very close to the machining area, visible from two sides
Chucks for different pallet systems can be integrated into the C‑table
Download Stroke position RXP400DS — 472 kB
