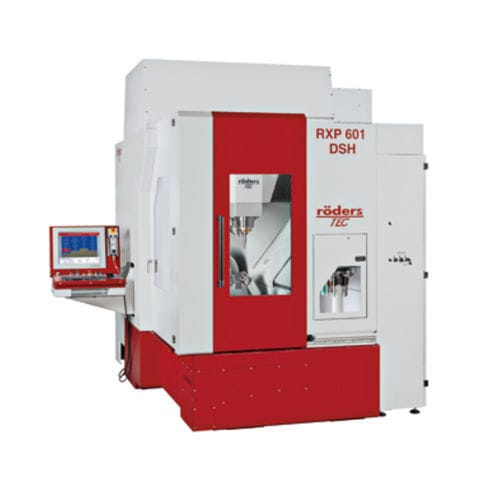

5-axis CNC machining center RXP601DSHverticalHSK-E50direct-drive
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-E50
- Other characteristics
- direct-drive, high-precision
- X travel
540 mm
(21.26 in)- Y travel
635 mm
(25 in)- Z travel
400 mm
(15.75 in)- Rotational speed
36,000 rpm
(226,195 rad.min-1)- Power
15 kW
(20.39 hp)- Work feed X-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39.37 in/s)- Work feed Y-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39.37 in/s)- Work feed Z-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39.37 in/s)- Table load capacity
200 kg
(441 lb)- Weight
10.2 t
(11.24 us ton)- Overall length
2,950 mm
(116.1 in)- Overall width
2,950 mm
(116.1 in)- Overall height
3,070 mm, 3,210 mm
(120.9 in, 126.4 in)
Description
Highest possible dynamics through extremely powerful direct drives, also in the rotary axes
Highly precise due to special Röders geometry compensation
Maximum workpiece size in height and diameter significantly larger than on RXP601DS
Highly efficient due to high stiffness and optimum layout of the mass inertia
Two-sided support of the C‑axis for high stability and precision
Counter bearing dimensioned for up to 7 t load
High resolution optical encoders in all axes
Powerful wear-free direct drives in all axes
Special Röders 5‑axis geometry compensation for high precision, also at long lasting machining operations
Precise temperature control of machine components
For dynamic decoupling, the swivelling direction is at right angles to the X axis
Windows very close to the machining area, visible from two sides
Chucks for different pallet systems can be integrated into the C‑table
