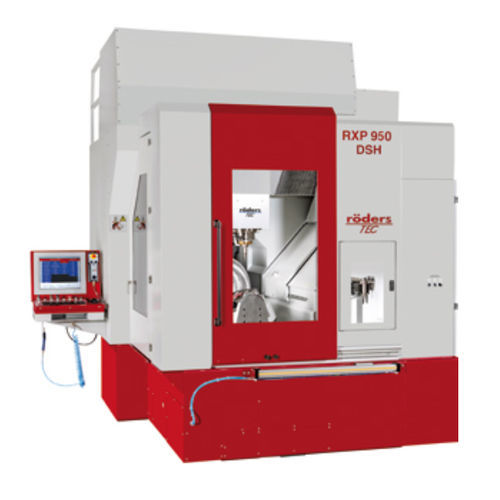

5-axis CNC machining center RXP950DSH verticalHSK-E5040 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-E50
- Number of tool stations
- 40 tools, 86 tools
- Other characteristics
- direct-drive, high-power, high-precision
- X travel
600 mm
(23.62 in)- Y travel
905 mm
(35.63 in)- Z travel
500 mm
(19.69 in)- Rotational speed
36,000 rpm
(226,195 rad.min-1)- Power
15 kW
(20.39 hp)- Work feed X-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39.37 in/s)- Work feed Y-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39.37 in/s)- Work feed Z-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39.37 in/s)- Table load capacity
800 kg
(1,764 lb)- Weight
15.5 t
(17.09 us ton)- Overall length
3,250 mm
(128 in)- Overall width
3,350 mm
(131.9 in)- Overall height
3,500 mm
(137.8 in)
Description
Highest possible dynamics through extremely powerful direct drives, also in the rotary axes
Highly precise due to special Röders geometry compensation
Strong rotary and swivel unit, identical with the one of the RXU1001DSH
Highly efficient due to high stiffness and optimum layout of the mass inertia
Two-sided support of the C-axis for high stability and precision
Counter bearing dimensioned for up to 7 t load
High resolution optical encoders in all axes
Powerful wear-free direct drives in all axes
Special Röders 5-axis geometry compensation for high precision, also at long lasting machining operations
Precise temperature control of machine components
For dynamic decoupling, the swivelling direction is at right angles to the X axis
Windows very close to the machining area, visible from two sides
Chucks for different pallet systems can be integrated into
the C-table
