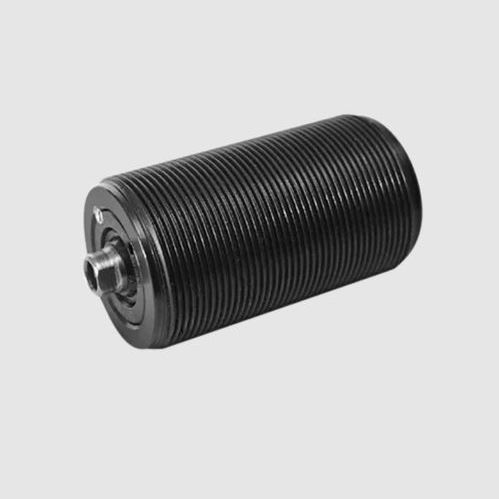

Hydraulic cylinder B1.309pistonclampingcompact
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Applications
- clamping
- Other characteristics
- compact, block, double
- Stroke
Max.: 100 mm
(3.937 in)Min.: 8 mm
(0.315 in)- Pressure
100 bar, 500 bar
(1,450.38 psi, 7,251.89 psi)- Force
Max.: 62.8 kN
Min.: 1.2 kN
Description
single and double acting, max. operating pressure 500 bar
Compact design excellent for punching, pressing, and assembly operations with high forces available.
The threaded-body universal cylinders are delivered with the same piston diameters and strokes as the well-proven block cylinders. A hydraulic connection is made at the cylinder bottom by hydraulic tubing or hoses. They can be used as clamping cylinders for workpiece clamping as well as for general motion tasks.
