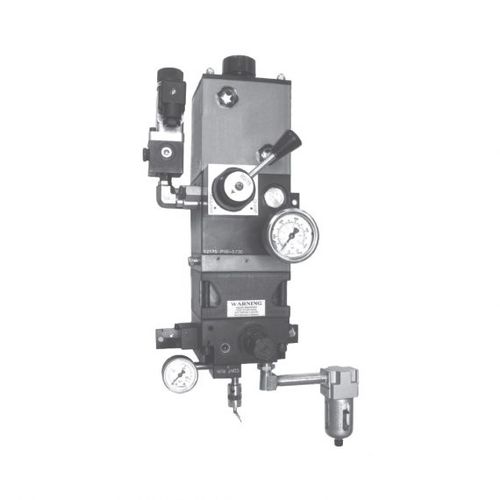

Electrically-powered hydraulic power unit 7.0100.US

oilpump

For use with hydraulic rollblocks max 1740 psi The pump is actuated by the manual air toggle or solenoid operated valve located at the base of the pump. It has a 40 cu. inch reservoir, with 20 cu. inch usable capacity. The out-put pressure (20:1) is controlled by the adjustable air regulator. A safety circuit relief valve reduces possible pressure intensification caused by overloading the rollblocks. A return line check valve keeps balls or rollers that are not under the die up during stamping.
