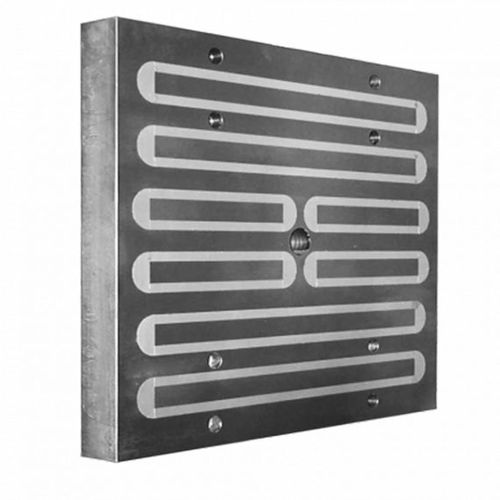

Electro-permanent magnetic chuck M-TECS R

rectangularfor presses

For temperatures up to 464°F for compression molding machines double-magnet technique long pole design M-TECS power concentration resistant to temperatures of up to 464°F two designs: standard version for presses power version for injection molding presses Injection molds, even if not standardized, can be easily and swiftly changed without need for retooling. As a result of a clamping force which is evenly distributed all over the clamping surface, tool wear is considerably reduced which means lower tool maintenance costs. With no moving parts, the system is basically maintenance-free. It is suitable for fitting onto existing injection molding machines or incorporating into new machines. M-TECS R being stable up to 130°C largely covers the whole temperature range that may occur in the thermoplastics processing industry. The magnetic poles have been designed to build up a clamping force of between 5 and 12 kg/cm2 . Highest quality materials are used for the long pole design which is based on a doublemagnet technique. Its outstanding power concentration makes the system much stronger than any comparable magnetic plate. M-TECS R by RIVI opens up brand new paths for the rubber and the duroplastics processing industries. With no downtime or waiting time to cool down or heat up tools, retooling times can sometimes be cut by hours. Using the advanced magnetic clamping technique, molds can be changed even when they are hot as the operator will not make contact with them at all. This is both convenient and safe.
