2U power supply R&S®NGT3600

DCdual-outputsingle-output

Overview

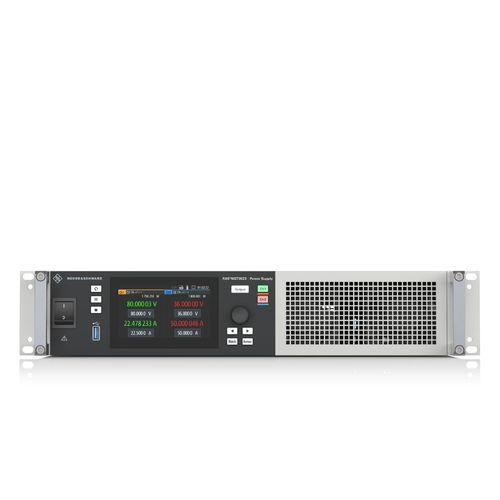

The R&S®NGT3600 series provides one or two fully independent 1800 W outputs in a compact programmable DC power supply. Each output supports up to 80 V or 50 A and the instrument includes autoranging (FlexPower), QuickArb, EasyRamp, remote sensing, a 4.3" touchscreen and integrated data logging to streamline test workflows and reduce configuration errors.

Key facts

• Max. output power: 3600 W (two outputs)
• Max. voltage per output: 80 V
• Max. current per output: 50 A
• Expandable to up to 480 V or 300 A in Multi-Device mode
• Intuitive online product configurator with transparent pricing

Main features and benefits

• 4.3" high-resolution touchscreen: fast navigation and virtual keyboard; clear channel overview with status, statistics and active protections.
• Autoranging (FlexPower): automatically adapts the voltage/current range to extract maximum power from each channel across wide voltage/current combinations.
• Channel fusion: combine the two outputs in series for higher voltage or in parallel for higher current.
• Multi-Device mode: synchronize up to six outputs across multiple R&S®NGT3600 units (host/client) for scalable high-voltage stacks or high-current configurations.
• Integrated measurements: per-output voltage and current measurement with high resolution (down to 1 mV / 100 µA) and statistics (min, max, avg) for power, voltage, current and energy.
• Data logging: simultaneous voltage and current logging on all outputs; timestamped CSV export for analysis and documentation.
• Arbitrary function (QuickArb): create time-varying voltage/current sequences with dwell times down to 1 ms for realistic stress tests.

Available models
R&S®NGT3621 | 1 output | Max. output power: 1800 W | Output voltage per channel: max. 80 V | Output current per channel: max. 50 A | Starting at 8 250 EUR
R&S®NGT3622 | 2 outputs | Max. output power: 3600 W | Output voltage per channel: max. 80 V | Output current per channel: max. 50 A | Starting at 12 500 EUR

Technical specifications

• Number of output channels: 1 or 2
• Total output power: max. 1800 W (single) / 3600 W (dual)
• Maximum output power per channel: 1800 W
• Maximum output voltage per channel: 80 V
• Maximum output current per channel: 50 A
• Voltage ripple and noise (20 Hz to 20 MHz) at 35 V / 25 A: < 5 mV (RMS) measured; < 10 mV (Vpp) measured
• Current ripple and noise (20 Hz to 20 MHz): < 10 mA (RMS) measured
• Load recovery time (10% to 90% load change within ±200 mV): < 1.5 ms measured
• Programming resolution voltage: 1 mV
• Programming resolution current: 1 mA
• Readback resolution voltage: 1 mV
• Readback resolution current: 100 µA (general); 5 µA for ≤ 2.5 A
• Readback accuracy voltage: < 0.03% + 6 mV
• Readback accuracy current: < 0.05% + 8 mA (general); < 0.05% + 500 µA for ≤ 2.5 A
• Measurement functions: voltage, current, power, energy
• Protection functions: OVP, OCP, OPP, OTP
• FuseLink and fuse delay at output-on: present
• Remote sensing: present
• Trigger input/output: present
• Arbitrary function: QuickArb
• Data logging: 100 samples/s
• Display: TFT 4.3" 480 × 272 pixel WVGA touchscreen
• Remote control interfaces (standard): USB, LAN
• Dimensions (W × H × D): 481 mm × 88 mm × 565 mm
• Weight: 13.5 kg (1 output) / 18.5 kg (2 outputs)
