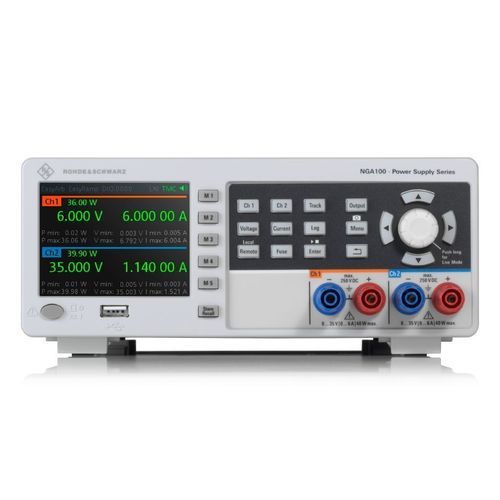

Tabletop power supply R&S®NGA100

DCregulatedconstant-current

Summary
R&S®NGA100 DC power supplies are linear, compact and easy to use in diverse scenarios. All models provide excellent readback accuracy with a low-current range for demanding measurements. Data logging, arbitrary waveforms (CH1), built-in statistics and remote sensing features make these instruments suitable for bench applications and automated tests. Channel fusion (serial/parallel) extends voltage and current range. Advanced protection functions (OVP, OCP, OPP, OTP) protect connected devices and the instruments.

Applications

• R&D
• Creating IoT low power designs
• Manufacturing
• Education
• General purpose bench use

Key facts

• Max. output power: 80 W (series max)
• Max. voltage per channel: 35 V or 100 V (depending on model)
• Max. current per channel: 2 A or 6 A (depending on model)
• Up to 200 V in serial mode or up to 12 A in parallel mode with channel fusion
• Intuitive, price-transparent online product configurator

Features & benefits
Linear design
Linear output stages minimize residual ripple and noise, providing extremely stable output voltage and current for sensitive circuitry.

High readback accuracy
Outstanding programming and readback accuracy for precise measurement and replication of device power consumption, including low-current measurement range. Currents below 200 mA are measured with a resolution of 1 µA and accuracy of ±(0.15 % + 25 µA). Integrated statistics show min./max. values for power, voltage and current.

FlexPower
The series operates with maximum power at various operating points and covers more operating combinations than single-range power supplies; FlexPower curves indicate available voltage/current combinations per model.

Channel Fusion
The two output channels of R&S®NGA102 and R&S®NGA142 can be fused in series or parallel to double voltage or current capability. Serial fusion is internal; parallel fusion requires external wiring.

Convenient configuration
Base units and options can be selected in an online configurator to create the required instrument configuration with transparent pricing.

Available models

• R&S®NGA101 — 1 output channel — Max. 40 W — Output voltage per channel: 0 V to 35 V — Output current per channel: 0 A to 6 A — Order number: 5601.8002.02
• R&S®NGA141 — 1 output channel — Max. 40 W — Output voltage per channel: 0 V to 100 V — Output current per channel: 0 A to 2 A — Order number: 5601.8002.03
• R&S®NGA102 — 2 output channels — Max. 80 W — Output voltage per channel: 0 V to 35 V — Output current per channel: 0 A to 6 A — Order number: 5601.8002.04
• R&S®NGA142 — 2 output channels — Max. 80 W — Output voltage per channel: 0 V to 100 V — Output current per channel: 0 A to 2 A — Order number: 5601.8002.05

Additional functional highlights

• Low-current measurement range and integrated statistics reduce the need for external multimeters
• Arbitrary waveforms (EasyArb) on CH1
• Data logging (standard)
• Multiple remote interfaces: USB-TMC, USB-CDC (virtual COM), LAN
• Rear panel: 8-pin connector block for outputs and remote sensing
• 3.5" QVGA display

Caractéristiques / spécifications techniques

• Number of output channels: R&S®NGA101, R&S®NGA141 = 1; R&S®NGA102, R&S®NGA142 = 2
• Total output power: R&S®NGA101 / R&S®NGA141 — Max. 40 W; R&S®NGA102 / R&S®NGA142 — Max. 80 W
• Maximum output power per channel: 40 W
• Output voltage per channel: R&S®NGA101, R&S®NGA102 = 0 V to 35 V; R&S®NGA141, R&S®NGA142 = 0 V to 100 V
• Maximum output current per channel: R&S®NGA101, R&S®NGA102 = 6 A; R&S®NGA141, R&S®NGA142 = 2 A
• Voltage ripple and noise (20 Hz to 20 MHz): R&S®NGA101 / NGA102 < 0.5 mV (RMS), < 10 mV (p‑p) (meas.); R&S®NGA141 / NGA142 < 1.5 mV (RMS), < 20 mV (p‑p) (meas.)
• Current ripple and noise (20 Hz to 20 MHz): < 500 µA (RMS) (meas.)
• Load recovery time (10% to 90% load change to within 0.2% of rated voltage): R&S®NGA101 / NGA102 < 100 µs; R&S®NGA141 / NGA142 < 50 µs (meas.)
• Programming resolution: voltage 1 mV; current 1 mA
• Readback resolution: voltage 1 mV; current 100 µA (for currents < 200 mA: 1 µA)
• Readback accuracy voltage ±(% of output + offset): R&S®NGA101 / NGA102 < 0.02% + 5 mV; R&S®NGA141 / NGA142 < 0.02% + 10 mV
• Readback accuracy current ±(% of output + offset): < 0.03% + 500 µA
• Measurement functions: voltage, current, power
• Protection functions: OVP, OCP, OPP, OTP
• FuseLink function: available for R&S®NGA102 and R&S®NGA142
• Trigger I/O: available with option R&S®NGA-K103 (digital trigger I/O)
• Arbitrary function: CH1 only (EasyArb)
• Data logging: standard
• Display: 3.5" / QVGA
• Rear panel connections: 8-pin connector block (outputs, remote sensing)
• Remote control interfaces (standard): USB-TMC, USB-CDC (virtual COM); LAN (standard)
• Dimensions (W × H × D): 222 mm × 97 mm × 448 mm (8.74 in × 3.82 in × 17.64 in)
• Weight: R&S®NGA101 6.6 kg; R&S®NGA141 6.9 kg; R&S®NGA102 7.0 kg; R&S®NGA142 7.3 kg
• Rack installation: R&S®HZN96 rack adapter, space for two instruments — 19", 2 HU
