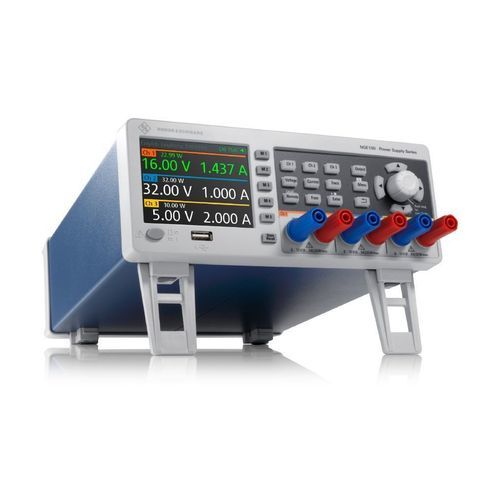

Tabletop power supply R&S®NGE100B

DCregulatedconstant-current

Overview
The R&S®NGE100B DC power supply series provides efficient, low‑ripple outputs and a set of practical functions for bench and test applications. Models are available with two (R&S®NGE102B) or three (R&S®NGE103B) independently controlled channels. Typical use cases include R&D, education, manufacturing test, maintenance and repair. An online product configurator is available for fast selection.

Key facts

• R&S®NGE102B: 2 independent channels; R&S®NGE103B: 3 independent channels
• Max. total output power: 66 W (NGE102B) / 100 W (NGE103B)
• Output voltage per channel: 0 V to 32 V
• Maximum output current per channel: up to 3 A
• Standard USB (VCP/TMC); optional LAN (LXI), optional wireless LAN, optional digital trigger I/O (4‑bit)

Features & benefits
Galvanically isolated channels
Each channel is electrically isolated from the others and not tied to chassis earth, allowing safe series and bipolar connections without ground conflicts in complex DUT setups.

Parallel and serial operation
Channels are electrically equivalent and can be connected in series for higher voltages (up to 96 V with the R&S®NGE103B, up to 64 V with the R&S®NGE102B) or paralleled for higher currents (up to 6 A when combining two channels; up to 9 A using all three channels of the R&S®NGE103B).

Protection functions
Per‑channel limits are supported: maximum current (electronic fuse / OCP), maximum voltage (OVP), maximum power (OPP) and thermal protection (OTP). On limit reach, the affected output switches off and a message is shown. The optional FuseLink function links overcurrent protection across channels.

Color‑coded operating conditions
A 3.5" QVGA display (320 × 240) shows operating states with color codes: constant voltage = green, constant current = red, inactive = white; the channel being adjusted is highlighted with a blue background.

Connectivity

• Front connectors: 4 mm safety binding posts
• USB interface: virtual COM port and TMC class (standard)
• Optional LAN (LXI) with integrated web server (option R&S®NGE-K101)
• Optional wireless LAN (option R&S®NGE-K102)
• Optional digital trigger I/O (4‑bit) on the rear (option R&S®NGE-K103)

Other highlights
EasyArb arbitrary waveform function; measurement functions for voltage, current, power and energy; intuitive display and operating concept for clear status and settings.

Available models

• R&S®NGE102B — 2 output channels — Max. total power 66 W — 0 V to 32 V per channel — 0 A to 3 A — from 1.010 EUR
• R&S®NGE103B — 3 output channels — Max. total power 100 W — 0 V to 32 V per channel — 0 A to 3 A — from 1.190 EUR

Technical specifications

• Number of output channels: 2 or 3
• Total output power: max. 66 W (NGE102B) / 100 W (NGE103B)
• Maximum output power per channel: 33.6 W
• Output voltage per channel: 0 V to 32 V
• Maximum output current per channel: 3 A
• Voltage ripple and noise (20 Hz to 20 MHz): typ. < 1.5 mV RMS; < 20 mV pp (meas.)
• Current ripple and noise (20 Hz to 20 MHz): < 2 mA RMS (meas.)
• Load recovery time (10%→90% within ±20 mV): < 200 µs (meas.)
• Programming/readback resolution — voltage: 10 mV; current: 1 mA
• Readback accuracy voltage: < 0.1 % + 20 mV; current: < 0.1 % + 5 mA
• Measurement functions: voltage, current, power, energy
• Protection functions: OVP, OCP, OPP, OTP; FuseLink supported
• Arbitrary function: EasyArb
• Display: 3.5" QVGA (320 × 240)
• Remote interfaces (standard): USB (VCP/TMC); optional: LAN (LXI)
• Dimensions (W × H × D): 222 mm × 97 mm × 310 mm
• Weight: approx. 4.9 kg / 5.0 kg (depending on model)
• Rack installation: via R&S®HZC95 option
