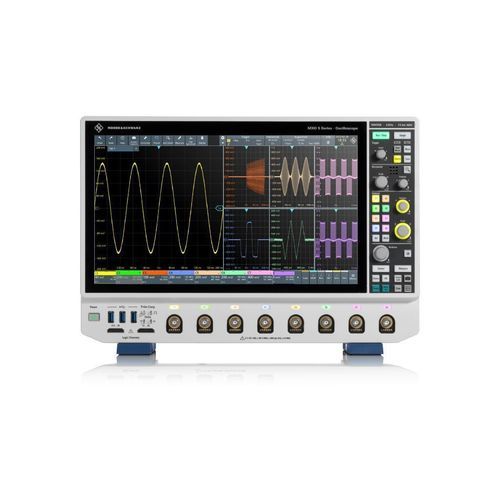

Digital oscilloscope R&S®MXO 5

analogbench-topmulti-channel

Overview
The R&S®MXO 5 series is a modular high-performance oscilloscope platform available in 4- and 8-channel variants. It combines high acquisition rates, deep memory and multispectral spectrum capabilities to accelerate debugging, validation and production testing of electronic systems.

Key facts

• Channels: 4 or 8 analog channels; optional MSO up to 16 digital channels
• Bandwidth: selectable per model and upgrade up to 2 GHz
• Acquisition rate: > 4.5 million waveforms/s; spectrum FFT performance up to > 50k FFT/s
• Vertical resolution: 12-bit ADC; up to 18-bit with HD mode
• Standard memory: 500 Mpoints per channel (optional extension to 1 Gpoint)

Features & benefits

• High-throughput acquisition: world-first 8-channel architecture achieving > 4.5 million acquisitions/s, supporting multi-channel waveform rates up to ~18 million wfms/s.
• Superior vertical fidelity: 12-bit ADC across sample rates and HD 18-bit architecture for improved measurement resolution and low noise down to ~130 μV.
• Deep capture capability: 500 Mpoints standard per channel with segmented and history modes for long records and high-resolution analysis; optional 1 Gpoint memory.
• Advanced triggering: zone trigger across analog, spectrum and math; trigger sensitivity to 0.0001 div; fast rearm and low trigger jitter.
• Multispectral analysis: simultaneous multi‑spectrum FFT views, independent time/frequency controls and high FFT throughput for RF and time‑domain correlation.

Available models

• R&S®MXO54-350 — 4 ch, 350 MHz
• R&S®MXO54-500 — 4 ch, 500 MHz
• R&S®MXO54-1000 — 4 ch, 1 GHz
• R&S®MXO54-2000 — 4 ch, 2 GHz
• R&S®MXO58-100 — 8 ch, 100 MHz
• R&S®MXO58-500 — 8 ch, 500 MHz

Downloads
Product brochure and full datasheet (PDF) available for download from the manufacturer.

Technical specifications

• Display: 15.6-inch Full HD capacitive touchscreen
• Sampling: up to 5 Gsample/s (2 channels) / 2.5 Gsample/s (4 channels); interpolated up to 5 Tsample/s
• Memory: standard 500 Mpoints per channel; optional MXO5-B110 to 1 Gpoint
• Triggers: edge, glitch, width, runt, window, zone trigger, serial bus triggers and advanced modes
• I/O: multiple USB 3.1 ports, RJ-45 GigE, HDMI 2.0, DisplayPort++ 1.3
• Dimensions: 445 × 314 × 153 mm; weight approx. 9.0 kg
