RF connector

dataN typecoaxial

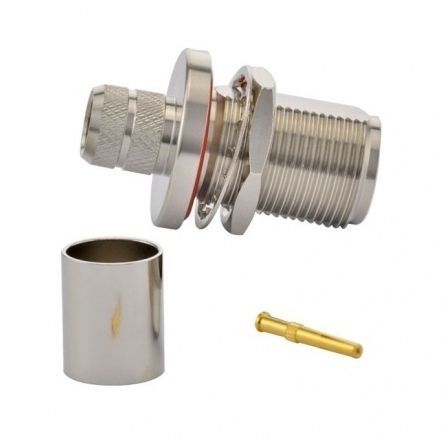

• Can terminate to coax, PCB (printed circuit board) or terminal; • Can be male or female gender in standard polarity or reverse polarity threads, with 50ohm impedance; • Body can be straight or right angle; • Mount Method can be press in, bulkhead, 2 hole panel, 4 hole panel or mount-less; • Attachment methods include clamp/solder, clamp/solder (captive contact), crimp/solder, field replaceable, solder or solder/solder; • Body is brass or stainless steel. The N type connector are designed to satisfy the need for a durable, weatherproof, medium-size RF connector, frequency max up to 1GHz; this Type N female Coaxial connector with bulkhead has an interface type of RG11 and a 75ohm impedance, attachment method uses Crimp/Crimp, its Straight body is brass with nickel plating.
