RF connector

coaxialN typeEIA

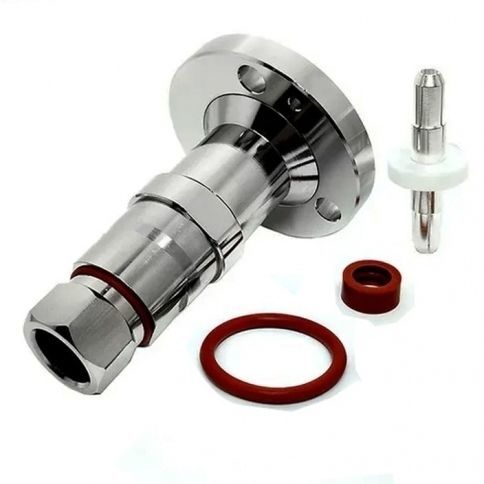

• Suitable for all the main manufacturers of the RF market; • Low losses, high performance and great robustness; • Easy mount installation with conventional tools; • Protection IP66 to IP68. The EIA coaxial connectors are available in EIA 7/8”, EIA 1 5/8”, EIA 3 1/8”, EIA 4 1/2” and EIA 6 1/8” versions, all of which are suitable for RF applications. Designed to support cables with foam or air-dielectric, they consist of a main body, mounting flange with various bolt circles, and typically have interchangeable/removable center conductor “bullets”. Due to the flexibility of their design, EIA connectors are often not identified as male or female, as the connector can typically be configured as either. EIA connectors can be found in high power applications on directional couplers, coaxial cables, power amplifier outputs, and interconnects on communication towers and antennas. The most common sizes found in general test and measurement applications are the 1 5/8 and 7/8 EIA. There are a variety of adapters available to adapt the EIA series to some of the larger RF connectors such as the 7-16 and N type. This is a 7/8" EIA flange clamp connector with internal O-rings, suitable for 1/2" super flexible, helical shielded, foam dielectric coaxial cable, or any equivalent 1/2" super flexible cable.
