RF connector

PCBBNCTNC

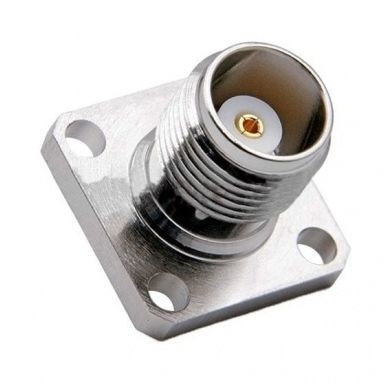

• Can terminate to coax, PCB (printed circuit board) or terminal; • Can be male or female gender in standard polarity or reverse polarity threads, with 50ohm impedance; • Body can be straight or right angle; • Mount Method can be press in, bulkhead, 4 hole panel or mount-less; • Attachment methods include clamp/solder, crimp/solder, solder or solder/solder; • Body is brass or stainless steel. The TNC connector series is a miniature, threaded weatherproof series with a constant 50 ohm impedance and a frequency range of DC to 11 GHz. The TNC series shares its contact design with the BNC series, utilizing a threaded coupling nut for secure mating and higher frequency performance than the BNC; this TNC female terminal connector with 4 hole flange has an interface type of Pin Terminal and a 50ohm impedance, attachment method uses shield/contact solder, its straight body is brass with nickel plating.
