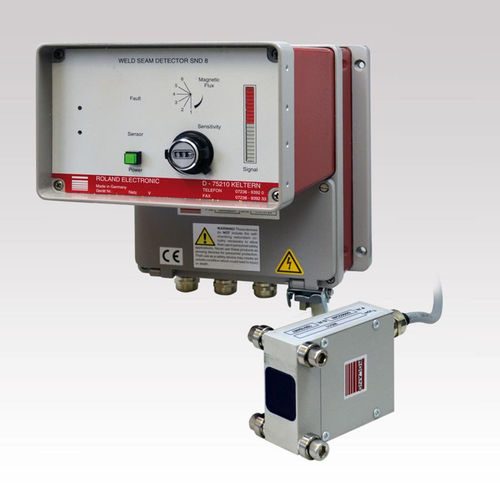

Weld seam detector SND8S + NS11

combination

A very simple device design ensures ease of use. In combination with the NS11 sensor, this device is particularly suitable for detecting weld seams on drums in the packaging industry. • Function principle: - Flux Leakage • Materials: - Steel, tinplate • Wall thickness: - 0.1 - 1.5 mm • Diameter: - 50 - 1000 mm • Speed: - starting 100 mm/s • Type of Weld Seam: - All Weld Seams, excepting laser weld seams • Programs: - • Operation: - Adjustment of the switching threshold via potentiometer; output only via light signal
