Control electrical enclosure IBGTflex4050S

DIN railABSpolycarbonate

Product overview

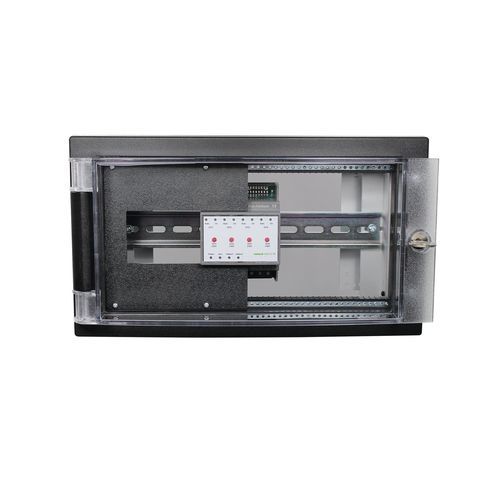

The IBGTflex4050S mounting frame is designed to install DIN-rail devices into a control cabinet door while maintaining a closed front using cover plates. The frame provides IP54 protection with an all-round polyurethane seal and can be locked with lock 3524E.

Key features

• Model: IBGTflex4050S
• For DIN-rail devices up to 245 mm width
• Installation depth for DIN devices: min. 45 mm, max. 125 mm
• Includes fixation with 4 x M6 screws
• Frame covers cutting edges; front closed by removable cover plates (manufacturable to specification)
• Lockable with lock 3524E (spare key available)

Technical data

• Material: Plastic ABS (PA6-GF10) and Makrolon
• Color: similar to RAL 7039
• Protection class: IP54 (all-round polyurethane seal)
• CE compliant
• Fire behaviour: similar to UL94 V2, self-extinguishing
• Dimensions (complete structure): Width 312 mm × Height 178 mm × Depth 154 mm; installation depth 127 mm
• Capacity for DIN-rail devices: up to 245 mm width
• Weight (approx.): 0.8 kg
• Patent: Patent-Nr. 10 2004 049 708.7

Ambient conditions

• Operating temperature: 0...50°C
• Transport and storage temperature: -20...+70°C
• Relative humidity: 5...95% non-condensing

Installation & accessories
The frame is attached to the cabinet door with 4 x M6 screws (included). Capacity and depths accommodate typical DIN-rail modules; a 250 mm DIN rail and blind plate (3HE, 4TE) are available as accessories.

• DIN rail, 250 mm
• Blind plate 3HE, 4TE
• Spare key for lock 3524E
• Side parts with mounting accessories
• Rivets and screws for fixing the DIN rail to the mounting frame
