Control electrical enclosure IBGTflex4084S

surface-mountedDIN railplastic

Product information

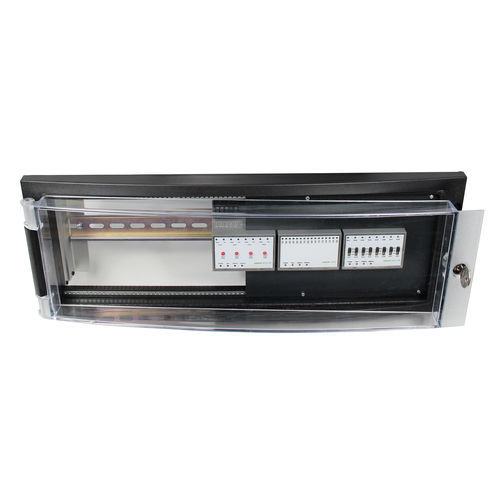

The IBGTflex4084S mounting frame is designed to install DIN rail devices into a control cabinet door, providing a flush front with cover plates to prevent visibility into the cabinet.

Sealing and protection
The frame covers the cutting edges and achieves protection class IP54 via an all-round polyurethane seal. It can be locked using lock 3524E.

Material, safety and environmental conditions
Material: Plastic ABS (PA6-GF10) and Makrolon
Color: similar to RAL 7039
CE compliant
Fire behaviour: similar to UL94 V2, self-extinguishing
Ambient conditions: operating temperature 0...50 °C; transport/storage temperature -20...+70 °C; relative humidity 5...95% non-condensing

Dimensions & installation
Overall dimensions (W x H x D): 483 x 178 x 154 mm
Cutout (recommended): 450 x 150 mm
Installation depth (frame): 127 mm; total depth (complete structure): 154 mm
Capacity for DIN rail devices width: up to 426 mm
DIN rail device installation depth: min 45 mm, max 125 mm
The frame is attached to the cabinet door with 4 x M6 screws (included).

Accessories (available)

• DIN rail, 430 mm
• Blind plate 3HE, 4TE
• Spare key for lock 3524E
• Side parts with mounting accessories
• Rivets and screws for fixing the DIN rail to the mounting frame

Delivered items / mounting
Mounting frame with 4 x M6 screws for attachment to the cabinet door (screws included).

Notes
Front cover plates close the view into the cabinet and can be custom manufactured. The frame covers cutting edges and ensures IP54 protection via the surrounding polyurethane seal.

Technical specifications

• Model: IBGTflex4084S
• Product number / SKU: 00003012
• Brand: romutec Steuer- und Regelsysteme GmbH
• Weight: 0.8 kg
• Protection class: IP54 (all-round polyurethane seal)
• Lockable: compatible with lock 3524E
• Patent: DE Patent-Nr. 10 2004 049 708.7
• Material: Plastic ABS (PA6-GF10) and Makrolon
• Color: similar to RAL 7039
• Fire behaviour: similar to UL94 V2, self-extinguishing
• Operating temperature: 0...50 °C
• Transport / storage temperature: -20...+70 °C
• Relative humidity: 5...95% non-condensing
• Overall dimensions (W x H x D): 483 x 178 x 154 mm
• Installation depth (frame): 127 mm
• Capacity for DIN rail devices width: up to 426 mm
• DIN rail device installation depth: min 45 mm, max 125 mm
• Mounting: attached to cabinet door with 4 x M6 screws (included)
• Delivered accessories / optional: DIN rail 430 mm, blind plate 3HE 4TE, spare key for 3524E, side parts, rivets and screws for DIN rail
