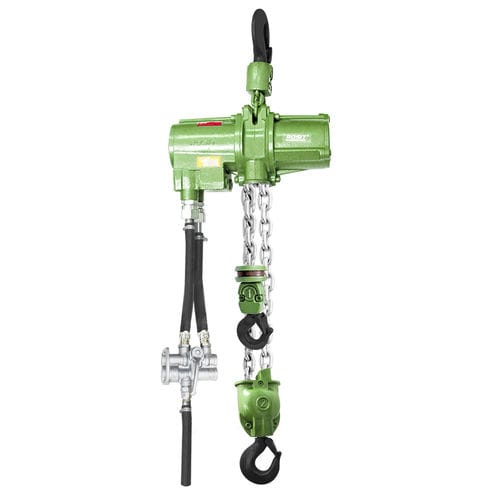

Pneumatic chain hoist LH23- 3/6ATEX
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Other characteristics
- ATEX
- Capacity
3 kg, 6 kg
(6.61 lb, 13.23 lb)- Lifting height
Max.: 20 m
(65'07" )Min.: 2 m
(6'06" )- Speed
3 m/min, 5 m/min
- Lifting speed
1.2 m/min, 2.3 m/min
- Lowering speed
3.5 m/min, 5.5 m/min
- Power
3 kW, 6 kW
(4.08 hp, 8.16 hp)- Weight
95 kg
(209.44 lb)
Description
Used for lifting heavy loads and handling hoisting operations in flammable and explosive environments; widely applied in mining, petroleum, chemical, coal, textile, machinery manufacturing, shipbuilding, and military industries.
Features
Pneumatic motor suitable for flammable and explosive environments
High transmission efficiency and smooth operation
Long service life with high-frequency operation capability
Compatible with various types of controllers and trolleys
Hook features a swivel design allowing angled pulling without wear
Stepless speed control
Low maintenance cost, suitable for oil-free operation
