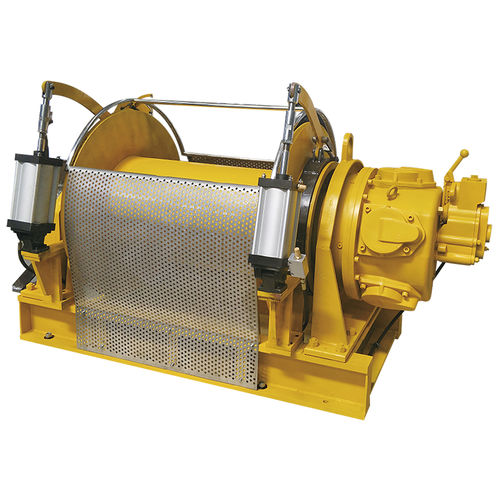

Pneumatic winch LW21-010wire ropetractionpulling
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- wire rope
- Application
- pulling, traction
- Other characteristics
- gear, rotary drum, drive
- Capacity
10 t
(11.02 us ton)- Speed
10 m/min
- Cable diameter
24 mm
(0.94 in)- Cable length
100 m
(328'01" )- Motor power
30 kW
(40.79 hp)- Pressure
0.8 MPa
- Weight
1,150 kg
(2,535.316 lb)
Description
Powered by a pneumatic motor, the winch uses a gear reduction mechanism to drive the drum, enabling the pulling, transporting, or hauling of heavy loads.
Features
Multiple braking systems available and combinable
Smooth operation with stepless speed regulation
Suitable for flammable and explosive environments
Designed for environments below 1000 meters altitude and temperatures ranging from -40°C to 60°C
Customizable based on customer requirements
Optional braking mode: 1. Single hand brake 2. hand brake + foot brake 3. Single hand brake + air brake 4. Double air brake 5. Disc brake + air brake
