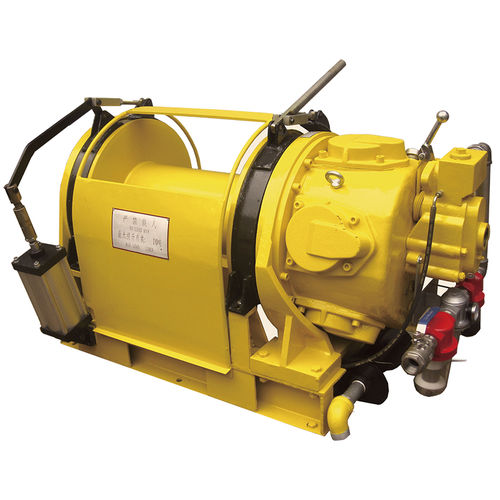

Pneumatic winch LW21-003wire ropetractionpulling
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- wire rope
- Application
- pulling, traction
- Other characteristics
- gear, rotary drum, drive
- Capacity
3 t
(3.31 us ton)- Speed
16 m/min
- Cable diameter
16 mm
(0.63 in)- Cable length
120 m
(393'08" )- Motor power
12 kW
(16.32 hp)- Pressure
0.69 MPa
- Weight
450 kg
(992.08 lb)
Description
Powered by a pneumatic motor, the winch uses a gear reduction mechanism to drive the drum, enabling the pulling, transporting, or hauling of heavy loads.
Features
Multiple braking systems available and combinable
Smooth operation with stepless speed regulation
Suitable for flammable and explosive environments
Designed for environments below 1000 meters altitude and temperatures ranging from -40°C to 60°C
Customizable based on customer requirements
Optional braking mode: 1. Single hand brake 2. hand brake + foot brake 3. Single hand brake + air brake 4. Double air brake 5. Disc brake + air brake
