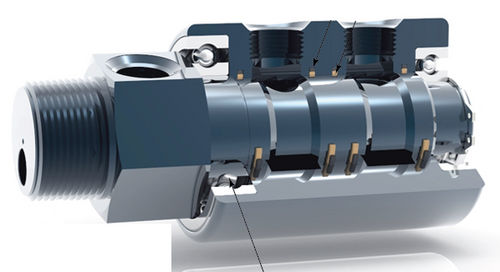

Air rotary union RU010
for vacuum2-passagehydraulic

air rotary union
air rotary union
air rotary union
air rotary union
Add to favorites
Compare this product


Characteristics

Medium
for air, for vacuum
Number of passages
2-passage
Applications
hydraulic, high-pressure
Other characteristics
ball bearing, shaft-mounted, low-speed
Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 380 rpm
(2,387.61 rad.min-1)

Pressure

Min.: 0 psi

Max.: 7,000 psi

Nominal size

2.45 in, 2.95 in, 3.7 in

Description

Rotary Systems’ dual port air / hydraulic rotary unions are designed for applications such as expanding mandrel drums on coil processing equipment. This rotary union uses a hardened and ground shaft, impregnated Teflon Seals, and ball bearings and is able to withstand high pressures at low speeds. Max. Air Pressure 250 PSI Max. Vacuum Pressure 28" Hg Max. Temperature 300° F
