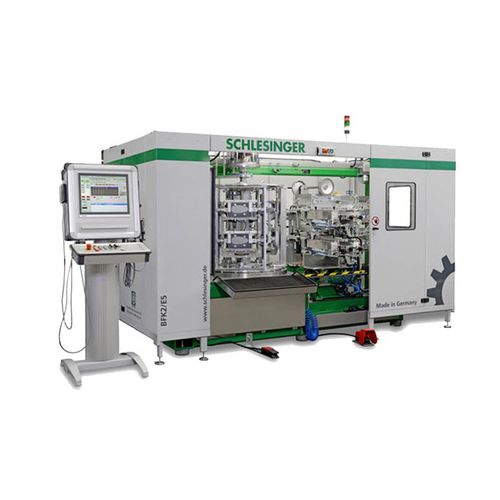

Carousel BFK2/E3

carousel
carousel
Add to favorites
Compare this product


Description

Carrousel Machine with two drilling and filling stations, with 3-Axis PC-control programming free-, for the production of brushes Tool size: 1,8 – 8,5 mm Tool stroke: 65 - 165 mm Materiallength: 40 - 360 mm (unfolded) Carrousel with 6 pneumatic clamping stations, running continuously. No changing of the brush bodies from drilling to filling. Control of failure and breakdown by indicator High speed, simple and quick changing from one model to the other. Home manufacturing of brush programmes automatically, manually by keyboard or ,“Teach-In method“. Machine speed: up to 900 bundles / min Noise Level: 75 dB Electrical connection: 4,5 KW Weight: 4000kg, net Dimensions: approx. D: 1,90 m W: 3,50 m H: 2,20 m
