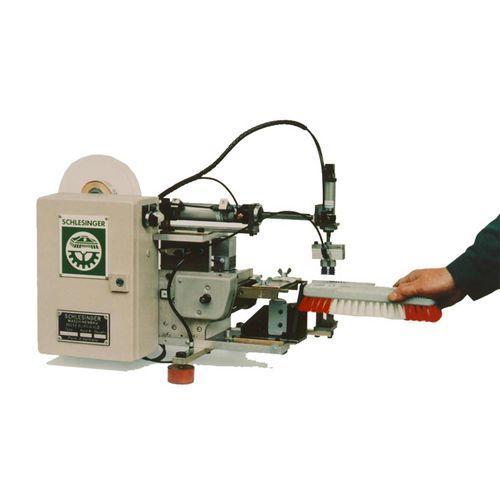

Automatic labeling machine ET-1
laser

automatic labeling machine
automatic labeling machine
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Other characteristics
laser
Throughput

Min.: 0 p/h

Max.: 1,200 p/h

Product height

350 mm
(13.78 in)

Description

for labelling brushes, brush blocks, packagings and other items. Size of labels: max. 100x100 mm Size of label bobine: max. Ø 250mm The item to be labelled is slided manually against a switch and the labelling is achieved automatically on the required position. This position is adjustable. The device itself can be set up on a table or on a machine body. Each label-size needs a corresponding suction unit. The labels are scanned by photo-cell. Output: Up to 1200 labels per hour Electrical connection: 110/220V 50/60Hz, 1 Phase Connection of pressure air: 6 bar Weight: approx.. 25 kg Dimensions: D: 600 mm W: 400 mm H: 350 mm
