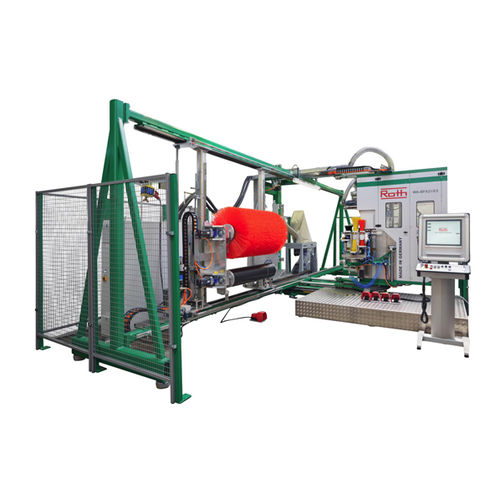

Roller brushing machine VP-WA-BFA21/E5

roller brushing machine
roller brushing machine
Add to favorites
Compare this product


Characteristics

Options
roller

Description

with 5-axles PC-control for the production of roller brushes, with two drilling and one filling station, with PC-control programming free Tool size: 6,0 mm – 12,0 mm Tool stroke: 300 mm (standard) Materiallength: 75-700 mm (unfolded) Production of roller brushes up to 2000mm length, core diameter 50-250mm With two drilling and one filling station 2 pneumatic stations, running continuously No changing of the brush bodies from drilling to filling. Control of failure and breakdown by indicator High speed, simple and quick changing from one model to the other. Home manufacturing of brush programmes, automatic generation of brush programmes. Machine speed: 150 bundles / min Noise Level: 75 dB Electrical connection: 4,0 KW Weight: 3500 kg, net Dimensions: approx. D: 3,80 m W: 6,00 m H: 2,20 m
