Industrial gas cylinder Nitrogen-Set

gasnitrogenportable

Product description

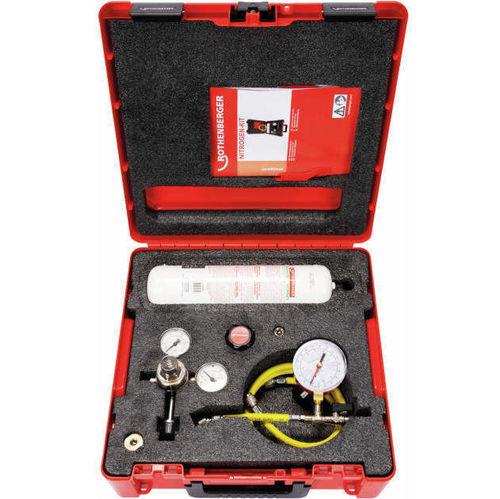

With the ROTHENBERGER Nitrogen Set, refrigeration and air-conditioning installers can perform leak testing, circuit flushing and nitrogen supply during brazing. A spring-loaded pressure reducing valve combined with a fine-scale class 1.0 gauge enables accurate pressure setting. The connection accepts large bottles and the set includes a compact nitrogen cylinder.

Functions and features

• Fine-scale class 1.0 gauge for precise pressure reading
• Spring-loaded pressure reducing valve for controlled pressure regulation
• Connection for large bottles (adaptable to various bottle sizes)
• Includes 950 cm³ nitrogen cylinder (approx. 1 kg)
• Transport case for storage and transport

Scope of delivery

• Pressure reducer (nitrogen)
• Nitrogen cylinder 1 kg, 950 cm³, 110 bar
• Fine-scale class 1.0 gauge
• Pressure hose
• Adapter for 1 L bottle
• Adapter 1/4" SAE M to 5/16" SAE F with valve depressor
• Operating instructions
• Plastic transport case

Technical data
Working pressure range: 0 – 50 bar
Test pressure range: 0 – 50 bar
Cylinder content: 950 cm³ (approx. 1,000 ml)
Cylinder working pressure: 110 bar

Characteristics / technical specifications

• Brand: ROTHENBERGER
• Product name: Nitrogen set for refrigeration circuits
• Product number: No. 1000003865
• Cylinder content: 950 cm³ (approx. 1,000 ml)
• Cylinder design pressure: 110 bar
• Working / test pressure range: 0 – 50 bar
• Included: spring-loaded pressure reducer, fine-scale class 1.0 gauge, pressure hose, adapters, valve depressor, operating instructions, plastic case
